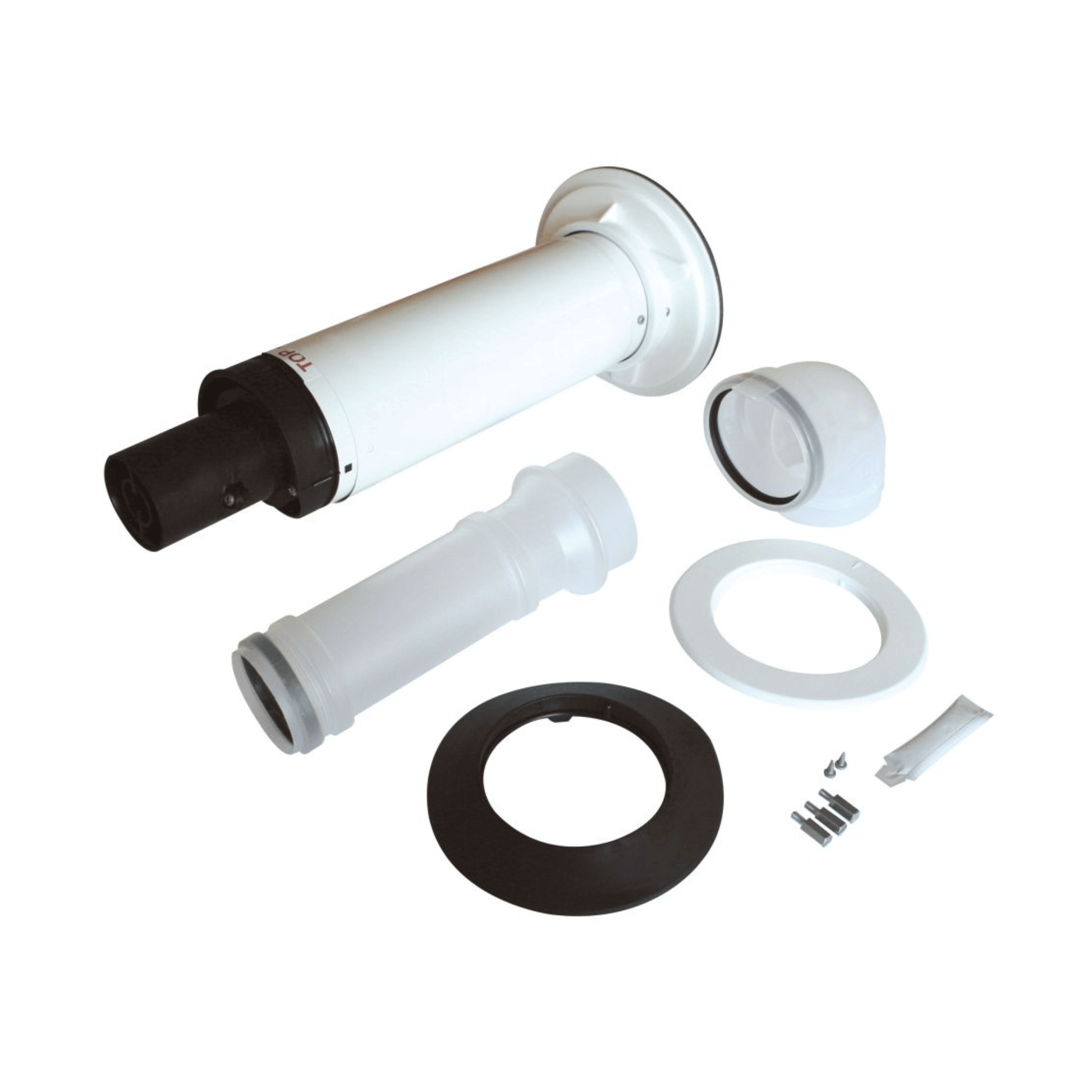

Worcester 8000 F Telescopic Horizontal Flue Kit - 60/100 - 350mm - 570mm - 7724001996

The Worcester 8000 F 60/100 (350-570mm) Telescopic Horizontal Flue Kit is a flue system designed specifically for the Worcester Bosch Greenstar 8000 F floor-standing boilers.

Here’s what it is and what it includes:

Purpose

• It provides a safe way to discharge combustion gases from the boiler to the outside of the building.
• The “60/100” refers to the concentric flue dimensions: 60 mm inner (exhaust) and 100 mm outer (air intake).

Key Features

• Horizontal flue: Designed for installations where the flue exits through an external wall.
• Telescopic design: Allows adjustable length between 350-570mm for different wall thicknesses.
• Room-sealed system: Ensures the boiler draws air from outside, improving efficiency and safety.
• Plume management compatibility: Can be extended or adapted to redirect exhaust plumes away from windows or doors.

Compatibility

• Exclusively for the Worcester Bosch 8000 F range.
• Not compatible with older floor standing models, Greenstar Highflow CDi or FS CDi boilers.

Installation Notes

• Must follow Worcester Bosch installation manual for correct measuring, cutting, and sealing.
• Can be combined with extensions and elbows for complex layouts.
