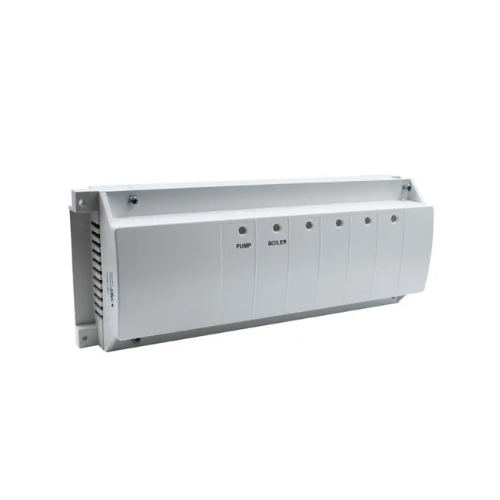

Watts WFHC Master UK Underfloor Connecting Box - 230Vac - Normally Closed - 4 Zone - P-2216/00

The Master 4 zone is a connecting box with all the main electrical connections for water an underfloor heating system. This is DIN rail or wall box mounted close to the manifold and connects room thermostats to their corresponding actuators. The actuators states (Open or closed) are indicated by green LED's, boiler and pump states (On/Off) by red LED's. The connecting box includes a volt free contact to drive external power supply. It is possible to add more zones by plunging in slave connecting boxes.

Features & Benefits

• Master 4 Zone UK Underfloor Connecting Box WFHC - 230Vac - Normally Closed - P-2216/00
• Connecting box with all the main electrical connections for underfloor heating systems
• DIN rail or wall-mounted connecting box
• Connects thermostats to corresponding actuators
• Volt free contact to drive external power supply
• Possible to add more zones by plugging in slave connecting boxes
• Normally closed operation

Specification

• Operating voltage: 230Vac +10%
• Operating temperature: 0 to 50°C
• Max actuators (Master 4 zones + 2 Slaves 4 zones): 24
• Max actuators / Zone (15W): 2
• Actuator contact: Triac
• Pump contact: Relay (max. 8 amps)
• Volt free contact: Relay (max. 8 amps)
