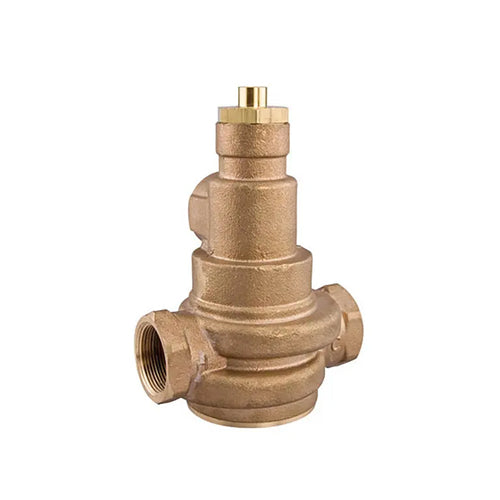

Watts N170-M3 Hot Water Master Tempering Valve - 1 1/2" FBSP x FBSP - EDP0478021

Approx. Lead Time: 4 Working Days

Description

Series N170 M3 hot water master tempering valves are specially designed for use on larger hot water supply systems for mixing hot and cold water for a variety of applications to extend the hot water supply. This series uses a paraffin-based thermostat to sense and adjust outlet temperature.

Features & Benefits

• 1 1/2" FBSP x FBSP - N170-M3 Hot Water Master Tempering Valve - EDP0478021
• 1 1/2" FBSP (Inlet) x 1 1/2" FBSP (Outlet) connections
•  Uses paraffin-based thermostat to sense and adjust outlet temperature
• Dirt and limescale resistant poppet and seat design
• Virtual shutoff if supply pressure fails
• Vandal-resistant locking mechanism to the sure temperature setting
• Max. operating pressure: 8.61 bar
• Max. hot water temperature: 93°C
• Min. hot water supply temperature: 3°C
• Temperature adjustment range: 32 - 82°C
• Hot water inlet temperature range: 42 - 82°C
• Coldwater inlet temperature range: 4 - 27°C
• Listings: ASSE 1017, IAPMO cUPC
• Approval Standards: ASSE 1017, CSA B125.3
• NOTE: Warning: N170-MS Tempering Valves cannot be used for tempering water temperature at fixtures. They should NEVER be used to provide 'anti-scald' or 'anti-chill' service.
