Description

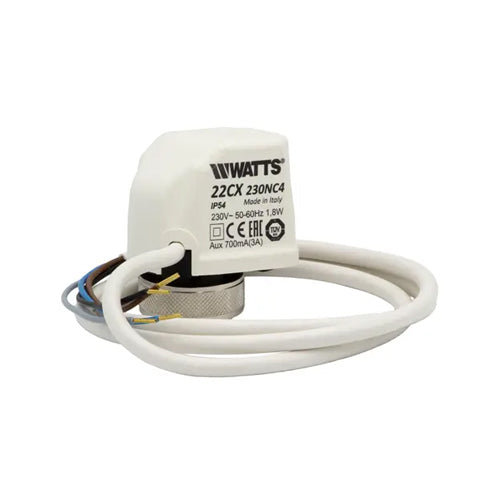

Watts 230 Volt Normally Closed Actuator 4 Wire 22CX230NC4
Features & Benefits
- Electrothermic actuator, compact design with on/off action
- Compatible with thermostat adaptable radiator valves series TRV, 102M 120B, valve for fan-coils series and regulation valves of Watts manifolds series HKV
- Normally Closed with a 4-wire electrical cable
- Cap made of flame-retardant plastic
Specification
- Power Consumption: 1,8W
- Protection Class: IP54
-
Actuator Stroke: 3.5mm
-
Valve Stroke: 2.5mm
- Version 230V: 90 Sec (start) - 3 min (end)
-
Valve Connection: M30 x 1.5
-
Voltage: 230V
-
Weight: 200g
- Part Number: 22CX230NC4
