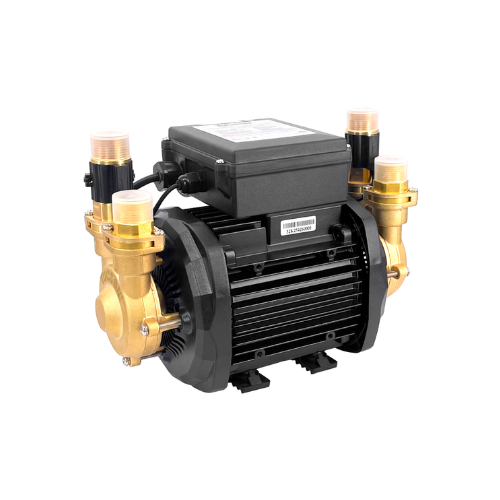

Tucson Equinox 3 Bar Positive Head Twin Impeller Shower Pump - 771959

Tucson Equinox 3 Bar Positive Head Twin Impeller Shower Pump - 771959

Ideal for gravity-fed systems, Equinox Positive Head Shower Pumps are designed for installation when the cold water tank is positioned above the showerhead.

The pump boosts both hot and cold water supplies, ensuring a stronger, more consistent shower experience. Easy to install and operate Crafted with a robust body made from high-grade CW617N brass 3 bar operating pressure & maximum head of 32 metres Quiet operation of less than 66 dB @5m Fully equipped with everything you need for installation, including flexible hoses & anti-vibration mat

Technical Data:

• Product Code: 771959
• Model Number: SBT3
• Description: Tucson 3 bar Positive Head Twin Impeller Shower Pump
• Voltage/Frequency: 230V / 50Hz
• Wattage: 670W
• Insulation Class: F
• Operating Environment Temperature: 5° -40°C
• Maximum WaterTemperature: 65°C
• Minimum Inlet Head: 0.5m
• Max Working Pressure: 10 Bar
• Maximum Head: 32m
• Max Flowrate / Q Max: 52L/min
• Acoustic Noise: <66 dB
• Ingress Protection Rating: IP44
• Inlet & Outlet Connection: 22mm Metric Compression Fittings
• AC Connection: 1.5m cable with 3-pin plug
• Pump Weight: 9kg
• Material Specification:

  Pump Housing - CW617N
  Impeller - CW617N
  Mechanical Seal - Carbon Ceramic EPDM
  Control Box - ABS+PC
  Motor Housing - ADC12
  Flexi Hoses - CW617N fitting, EDPM hoses with SUS304 braiding

• Manufacturing Standards:
  LVD EN IEC 60335-2-41:2021/A1:2021, EN 60335-1:2012/A15:2021, EN 62233:2008. WRAS Approved BS 6920-1:2014

*Stock dependant
