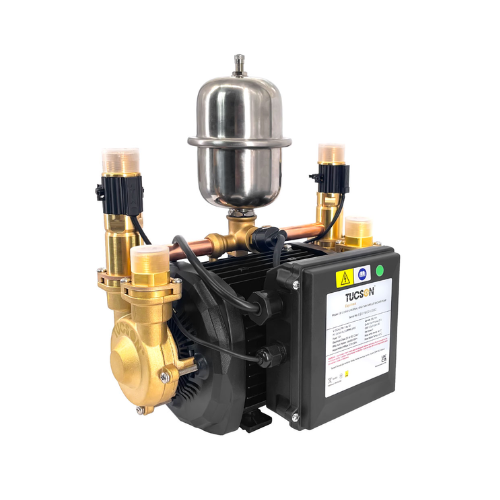

Tucson Equinox 2 Bar Universal Head Twin Impeller Shower Pump - 771933

Tucson Equinox 2 Bar Universal Head Twin Impeller Shower Pump - 771933

Perfect for a variety of setups, Equinox Universal Head Shower Pumps are designed to work in both positive and negative head systems, offering maximum flexibility for installation.

Whether the cold water tank is above or below the showerhead, the pump delivers powerful and balanced pressure to both hot and cold supplies, ensuring a consistently strong and satisfying shower experience.

Easy to install and operate

Crafted with a robust body made from high-grade CW617N brass

2 bar operating pressure & maximum head of 21 metres

Quiet operation of less than 66 dB @5m

Fully equipped with everything you need for installation, including flexible hoses & anti-vibration mat

Technical Data:

• Product Code: 771933
• Model Number: UBT2
• Description: Tucson 2 bar Universal Head Twin Impeller Shower Pump
• Voltage/Frequency: 230V / 50Hz
• Wattage: 500W
• Insulation Class: F
• Operating Environment Temperature: 5° -40°C
• Maximum WaterTemperature: 65°C
• Minimum Inlet Head: 0.5m
• Max Working Pressure: 10 Bar
• Maximum Head: 21m
• Max Flowrate / Q Max: 37L/min
• Acoustic Noise: <61 dB
• Ingress Protection Rating: IP44
• Inlet & Outlet Connection: 22mm Metric Compression Fittings
• AC Connection: 1.5m cable with 3-pin plug
• Pump Weight: 10.5kg
• Material Specification:

  Pump Housing - CW617N
  Impeller - CW617N
  Mechanical Seal - Carbon Ceramic EPDM
  Control Box - ABS+PC
  Motor Housing - ADC12
  Pressure Vessel - SUS304 housing
  Flexi Hoses - CW617N fitting, EDPM hoses with SUS304 braiding

• Manufacturing Standards:
  LVD EN IEC 60335-2-41:2021/A1:2021, EN 60335-1:2012/A15:2021, EN 62233:2008. WRAS Approved BS 6920-1:2014

*Stock dependant
