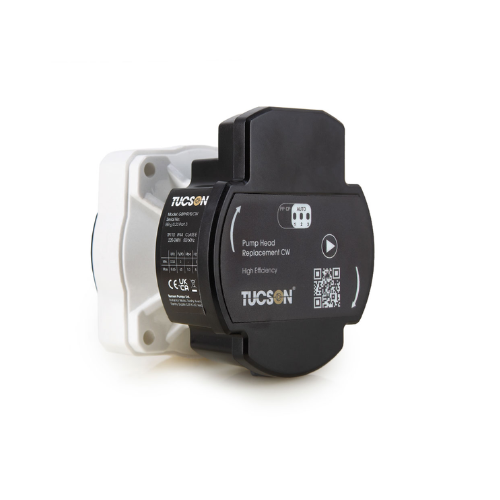

Tucson Clockwise Universal Pump Head Replacement Kit - 8m - 771928

Tucson Clockwise Universal Pump Head Replacement Kit - 8m - 771928

Designed to make retrofitting quick and easy. Compatible with most leading pump brands, including Grundfos®, it allows installers to replace pump heads efficiently in gas, oil, and other heating systems.

Available in both clockwise and counterclockwise models, this kit is the ideal solution for hassle-free pump head replacements, saving time and reducing the need for multiple trips to the merchant.

Easy to install and operate

Suitable for use with gas biolers, oil boilers, heat pumps, biomass boilers, solar stations and pellet boilers.

Versatile head range of 4-8m, with optional Pulse Width Modulation (PWM) control for precise, energy-efficient operation tailored to system needs

ErP-compliant with an impressive energy efficiency rating of <0.23 for reduced power consumption

Suitable for retrofitting most pump brands, including Grundfos® pumps

Technical Data:

• Product Code: 771928
• Model Number: GBPHR/8/CW
• Description: Tucson Universal Pump Head Replacement with PWM Control
• Energy Efficiency Index: EEI <0.21 Part 3
• Voltage/Frequency: 230V / 50Hz
• Wattage: 65W
• Insulation Class: F
• Operating Environment Temperature: 0° -40°C
• Fluid Temperature: 2° - 110°C
• Max Working Pressure: 10 Bar
• Min Working Pressure: 0.05 Bar @75°C
• Ingress Protection Rating: IP44
• Pump Weight: 1.1kg
• Material Specification:

  Impeller - PES & H52
  Control Box - ABS

*Stock dependant
