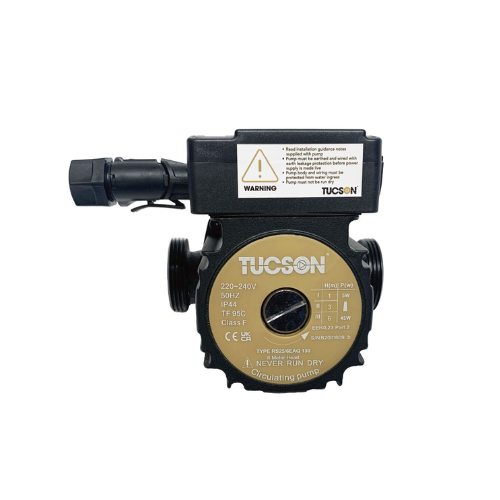

Tucson Circulating Pump - 6m - 771904

Tucson Circulating Pump - 6m - 771904

Built to deliver reliable performance in domestic central heating systems—circulating heated water from the boiler through radiators, towel rails, and back again to ensure consistent warmth.

Suitable for both new installations and replacement projects, each cast iron unit is designed for long-lasting durability and dependable operation.

Easy to install and operate

Suitable for domestic applications

Designed as a compact unit for tight spaces

ErP-compliant with an impressive energy efficiency rating of <0.23 for reduced power consumption

Crafted with a cast iron body, ideal for potable water systems and long-term resistance against corrosion

Technical Data:

• Product Code: 771904
• Model Number: RS25/6EAQ
• Description: Tucson 6 Metre A-Rated Circulating Pump
• Voltage/Frequency: 230V / 50Hz
• Wattage: 45W
• Insulation Class: F
• Operating Environment Temperature: 5° -40°C
• Max Fluid Temperature: 95°C
• Max Working Pressure: 10 Bar
• Min Working Pressure: 0.5Bar @50°C
• Ingress Protection Rating: IP44
• Threaded Connection: 1 1/2" BSP/G 1 1/2
• Pump Weight: 2.35kg
• Material Specification:

  Manifold - Electrophoresis Coated Cast Iron
  Impeller - PES
  Motor Head - ZL104
  Motor Can - SUS304
  Control Box - ABS+PC

• Manufacturing Standards:
  EMC Directive 2014/30/EU: EN55014-1+2, EN61000-3-2+ 3+3. LVD Directive 2014/35/EU: EN60335-1+2-41, EN62233. MD Directive 2006/42/EC: EN12100, EN60240, EN809+A1+AC. ErP No641/2009: (EU)622/2012 : EN16297-1+2+2. EEI <0.23

*Stock dependant
