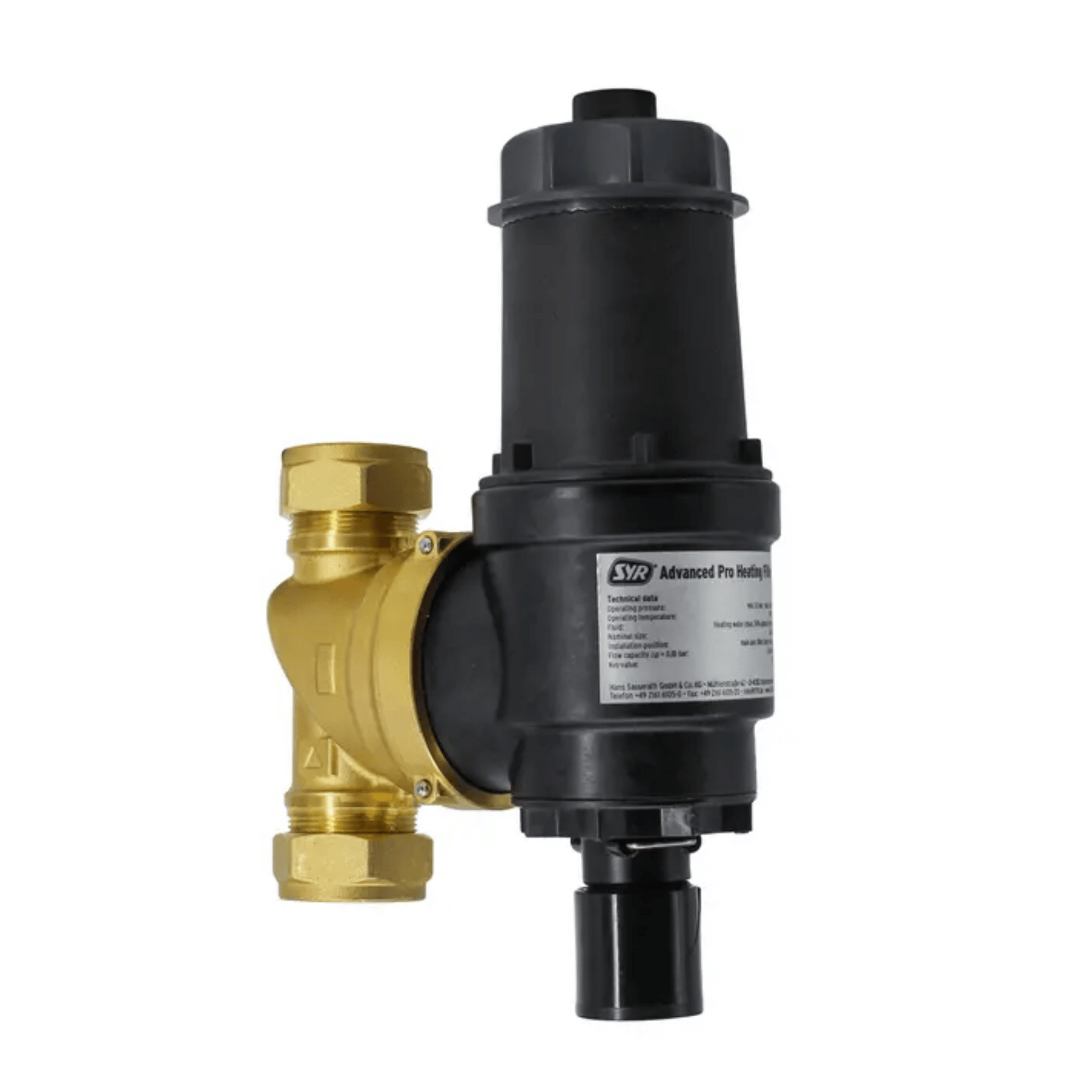

SYR Advanced Pro Heating Filter - 22/28mm - 3425.25.000

SYR Advanced Pro Heating Filter 3425 Datasheet

Description

Maximise Performance and Protect Your System with the SYR Advanced Pro Heating Filter.

Built with efficiency and longevity in mind, the SYR Advanced Pro Heating Filter features a high-performance magnetic filter and 100-micron precision strainer, providing unmatched filtration. The filter captures both magnetic debris and fine non-metallic particles, protecting systems from damage, blockages, and potentially costly breakdowns.

Because of its ultra-fine strainer, even small impurities are strained out, extending the life of system components and significantly increasing overall efficiency.

Its built-in backwashing system offers quick and easy in-place cleaning. It can take less than two minutes and requires no more than a bucket or drain hook-up. No disassembly, no hassle. Just easy & effective maintenance.

The SYR Advanced Pro Heating Filter also features a 360° rotatable flange, enabling flexible installation without affecting the filter body's (required) vertical orientation. Supplied as standard in 28mm with a 22mm reducing set, it provides straightforward compatibility for a variety of system configurations, including Heat Pumps and Heating Systems.

Choose the SYR Advanced Pro Heating Filter for cleaner systems, greater efficiency, and long-term peace of mind.

Features & Benefits

• Rapid Servicing: The backwashing system makes cleaning easy, taking less than 2 minutes to complete on average
• Limited Ongoing Maintenance Cost: Due to not having to replace the filter
• Ultra Fine Strainer: Ultra-fine 100 micron stainless steel strainer for optimal filtration & extended life span
• 360°C Rotation: Flexible 360°C rotation allowing vertical and horizontal installation
• High Quality Material: DZR brass alloy & high-performance plastic construction
• Universal Fittings: 28mm as standard with 22mm reducing set provided, making the product suitable for both heat pumps and heating systems
• Magnetic Sediment Capture: High-powered to catch magnetised debris
• Cooling Systems: Can be utilised for cooling systems with up to 50% glycol mix

Specification

• Operating Temperature: Max 110°C
• Minimum Operating Pressure: 1.5 bar
• Maximum Operating Pressure: 10 bar
• Kvs Value: 8.0
• Flow Rate: 3.6 m³/h
• Size: 28mm (can be reduced to 22mm with included reducers)
• Warranty: 2 years
