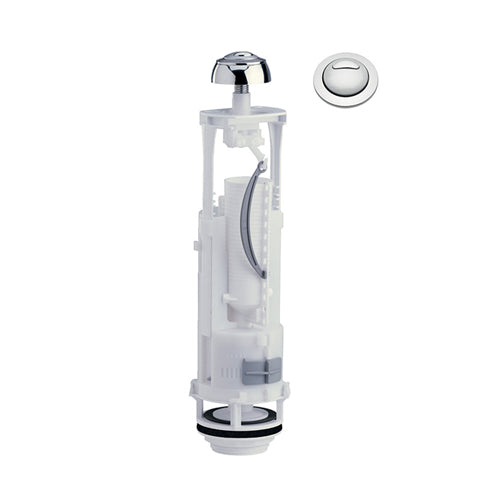

OPTIMA 49

Dual flush valve WRAS and NF certified, compact and water saving. The stirrup fixes the cistern lid once the button is screwed down and enables a non alignment position.

Adjustable button with optional collar.

Adjustable height from 282 and 430 mm, lid hole from 16 to 50, discharge hole from 58 to 72 mm. Adjustable : small flush, over flow, dead water level.

• Can be installed into plastic or ceramic cisterns
• Push button: dual flush
• Actuation effort below 20 Newton
• For lid holes ranging from 16 to 50mm, with or without collar depending on the diameter
• Button off-center +/- 15mm
• Stirrup: adjustable in increments of 12 mm
• Overflow can be cut in increments of 4mm
• Adjustable small flush, from 2l to 4.5l
• Adjustable deadwater level
• High flush rate of 3.5l/s
• Foam pan seal supplied for compensating pan irregularity
