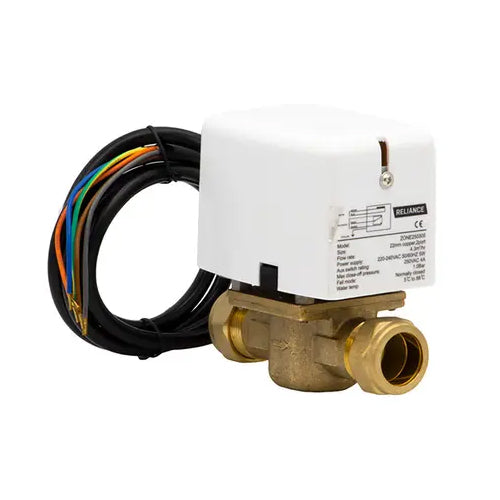

RWC Zone Valve with Detachable Head and Pre-wired Cable - 2 Port - 22mm - ZONE250305
RWC Zone Valve with Detachable Head and Pre-wired Cable - 2 Port - 22mm - ZONE250305
Couldn't load pickup availability
Description
A 240V two-port zone valve for use in heating systems to isolate a zone or equipment when the motor is energised. The valve is supplied complete with a pre-made moulded cable to plug straight in: removes the need for wiring, so any maintenance or retrofitting can be done with an electrician. The two-port zone valve features a unique detachable motorised head with robust metal manual actuating lever and is interchangeable with other leading manufacturer's valve bodies, mounted on the high-quality brass body to ensure long operating life and total installation flexibility.
Features & Benefits
- 22mm - Two-port - Zone Valve with Detachable Head and Pre-wired Cable - ZONE 250 305
- Easy to use, clip-on detachable head
- Pre-moulded plug and play cable supplied, so no wiring work required
- Metal manual operating lever for strength and stability
- Power supply: 220-240V, 50/60Hz, 5W
- Systems fuse rating: 3A maximum
- Auxiliary switch rating: 3A 250VAC
- Water temperature range: 5°C to 88°C
- Max. Differential pressure: 0.69 bar
- Cable length: 1 meter
- Connections: 22mm Compression
