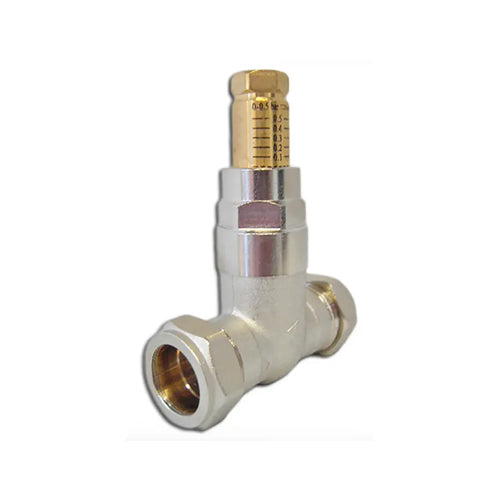

RWC Straight Automatic Dial Up Differential Bypass Valve - 22mm - DIFF200005
RWC Straight Automatic Dial Up Differential Bypass Valve - 22mm - DIFF200005
Couldn't load pickup availability
Approx. Lead Time: 2 Weeks
Description
The differential bypass valve is used to stabilise the circulation, flow rate and pump pressures in central heating systems. Designed for a quick and simple installation where the valve is set using a visual dial based on your system calculations for the differential pressure. The valve is set by rotating the adjustment dial (with all radiators closed) to the desired differential opening pressure. The valve allows the optimum flow rate through the boiler to be maintained by automatically opening and allowing circulation to continue even if all the thermostatic radiator valves are closed.
Features & Benefits
- 22mm Straight Automatic Dial-Up Differential By-Pass Valve - DIFF 200 005
- Maximum operating pressure: 10 bar
- Differential opening pressure range: 0-0.5bar
- Operating temperature: 110°C
- Connection Size: 22mm
- Valve Body: Standard Brass
- Spring: Stainless Steel
- O-Ring: EPDM
- Piston: POM
