Description

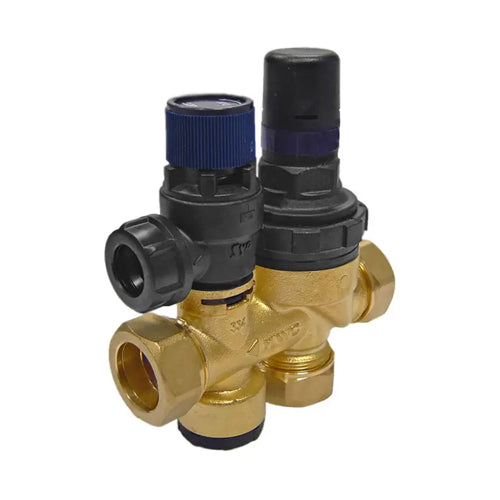

This one-piece inlet control incorporates several different control devices in one; it is specifically designed for use on an unvented system to control the incoming water supply to a hot water cylinder. Compact and lightweight in design, the valve incorporates several different controls. It includes a drop tight pressure reducing valve, a pressure relief valve, and a single check valve and also uses an integral strainer. The expansion relief valve is designed so it can rotate, to allow the discharge connection to be easily fitted in various directions, making installation simple.
Features & Benefits
- Internal floating baffle expansion system
- Unvented system control requirement for unvented cylinders
- Integral Strainer
- Balanced cold water take-off connection
- Single check valve
- Expansion vessel connection
Specification
- Brand: Reliance Water Controls
-
Connections: 22mm Compression
- Pressure Reducer: 3.5 Bar
-
Pressure Relief Valve: 6 Bar
-
Maximum Working Pressure: 16 Bar
- Maximum Temperature: 45°C
-
Pressure Reduction Ratio: 10:1 Max
- Part Number: CWIC355090
