Description

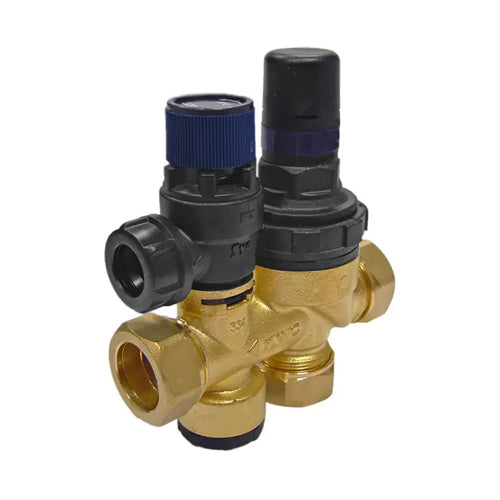

This one-piece inlet control incorporates several different control devices in one; it is specifically designed for use on an unvented system to control the incoming water supply to a hot water cylinder. Compact and lightweight in design, the valve incorporates several different controls. It includes a drop tight pressure reducing valve, a pressure relief valve, and a single check valve and also uses an integral strainer. The expansion relief valve is designed so it can rotate, to allow the discharge connection to be easily fitted in various directions, making installation simple.
Features & Benefits
- 1 Piece MK3 Multibloc Inlet Control Valve
- Unvented system control requirement for unvented cylinders
- 3.0 bar pressure reducer cartridge
- 4.5 bar rotating expansion relief valve
- Integral Strainer
- Balanced cold water take-off connection
- Single check valve
- Expansion vessel connection
- 22mm Connections
Specification
- Pressure Reduction: 3.0 Bar
- Pressure Relief: 4.5 Bar
- Maximum working pressure: 16 Bar
- Maximum temperature: 45ºC
- Pressure reduction ratio: 10:1 max
- Connections: 22mm compression
