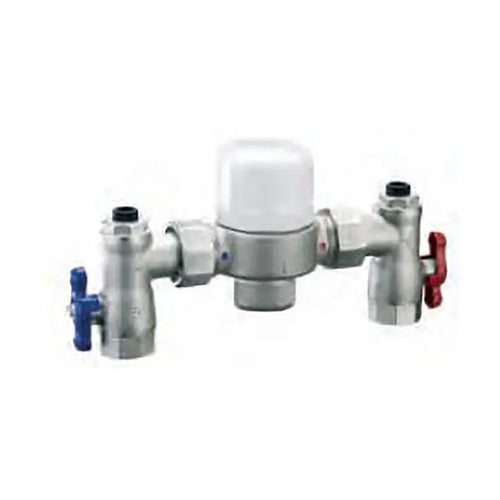

RWC Euromixer 630 4-in-1 Group Multiple Outlet Thermostatic Mixing Valve - 1 1/4" FBSP - HEAT640100

Description

A high flow rate thermostatic mixing valve for group mixing applications. Primarily used for multiple outlet shower or basin installations where stable out temperatures at varying flow rates are important. Comes complete with 4 in 1 fitting, consisting of a full flow, chrome-plated ball type isolating valve and a high flow barrel type strainer protecting the check cartridge/non-return valve from any system contamination. Also includes a 1/4" BSP test point for monitoring system conditions such as temperature, pressure and cross-flow.

Features & Benefits

• 1 1/4" FBSP - Euromixer 630 4 in1 Group Multiple Outlet Thermostatic Mixing Valve, Blending Tempering Valve - HEAT 640 100
• Factory Temperature Setting: 40 +/-2 Deg c
• Temperature Setting Range: 38 - 50 Deg c
• Temperature Hot Supply: 55 - 90 Deg c
• Temperature Cold Supply: 5 - 25 Deg c
• Maximum Static Pressure: 10 Bar
• Suitable For Feeding 1 to 10 Showers or Basins
• Minimum Flow Rate: 10 Litres Per Minute
