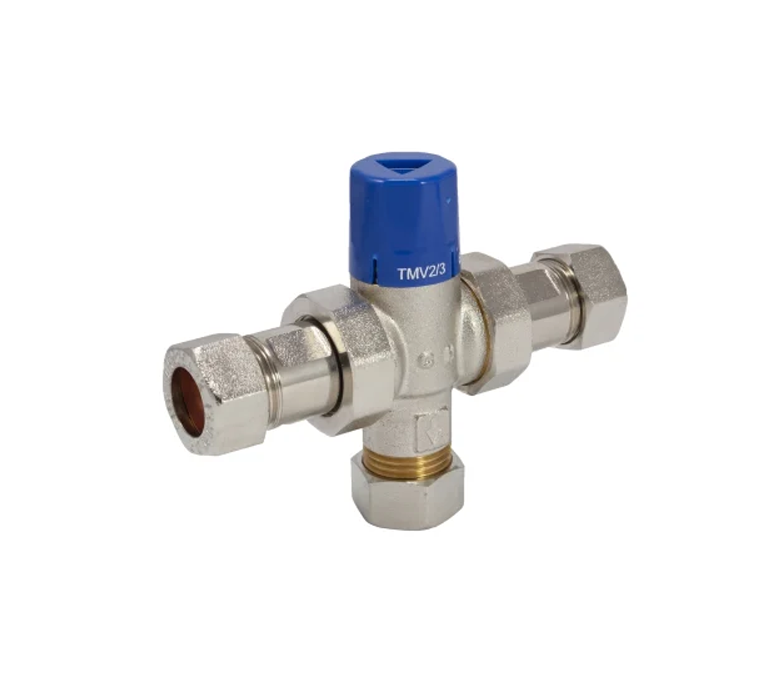

RWC Easifit TMV2/3 Theromstatic Mixing Valve - 22mm
RWC Easifit TMV2/3 Theromstatic Mixing Valve - 22mm
Shipping calculated at checkout.
Couldn't load pickup availability
Compact mixing valve that blends hot and cold water thermostatically to ensure a safe outlet temperature. (Approved for domestic, public and healthcare sectors)
Reliance Valves Easifit Thermostatic Mixing Valve blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns.
Ultra-compact and lightweight, Easifit is ideal for use in tight spaces such as under basins, baths and shower installations. The valve complies with all applicable UK and European performance standards.
Using unique technology, Easifit can function at a flow rate as low as 1 lpm, the lowest by far in the industry, and is also resistant to scale and other system contaminants ensuring increased valve longevity.
The 2-in-1 valve includes check valves as well as strainers that protect both the check valves and the main valve , whereas the 4-in-1 valve includes an isolating valve, check valve, strainers and test port for monitoring system pressure and temperature.
Available with flat faced unions or JG Speedfit push-fit connections, which can be fitted and demounted without the need for tools.
Ultra-compact and lightweight, Easifit is ideal for use in tight spaces such as under basins, baths and shower installations. The valve complies with all applicable UK and European performance standards.
Using unique technology, Easifit can function at a flow rate as low as 1 lpm, the lowest by far in the industry, and is also resistant to scale and other system contaminants ensuring increased valve longevity.
The 2-in-1 valve includes check valves as well as strainers that protect both the check valves and the main valve , whereas the 4-in-1 valve includes an isolating valve, check valve, strainers and test port for monitoring system pressure and temperature.
Available with flat faced unions or JG Speedfit push-fit connections, which can be fitted and demounted without the need for tools.
Features and benefits
- Suitable for BREEAM projects as the valve operates at flow rates as low as 1lpm (15mm version only)
- Works in larger areas up to 10:1 pressure differential, exceeding the industry standard of 5:1
- Features Viton seals instead of EPDM to significantly improve performance at higher temperatures
- Available with flat faced union on hot and cold connections or JG Speedfit push-fit for fast and simple installation and maintenance
- Suitable for shower, bath, basin and bidet hot water applications
- Flat faced union version can be used with copper pipe only
- JG Speedfit push-fit version is suitable for Speedfit PEX and polybutylene barrier pipe (inserts required) or copper pipe
- WRAS Approved
- KIWA Approved
- Certified to NSF TMV2
- Certified to NSF TMV3
