RWC Easifit Sealed System Controls Kit - EASI209104

Description

The WRAS 1999 Easifit Controls Kit has been designed to make the initial installation of a sealed system or conversion of a conventional vented heating system to a sealed system as easy as possible. The WRAS 1999 Easifit Controls Kit contains all of the basic control functions needed for a sealed system of up to 56kw - a filling loop (consisting of a double check valve, a flexible hose and a shut-off valve) a pressure gauge to show the system pressure and a 3 bar pressure relief valve which is part of a connection manifold. This simplifies the connection of the other components (including the expansion vessel) to the heating system.

Features & Benefits

• Easifit Sealed System Controls Kit for use with Sealed System Heating Expansion Vessel - EASI 209 104

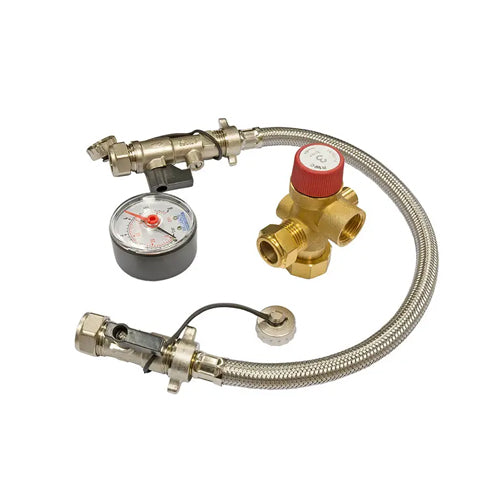

• Contains: Filling loop (Consisting of the doublechecking valve, flexible hose and shut-off valve), pressure gauge and 3 bar pressure relief valve which is part of the connection manifold
• Max. operating temperature: 65°C
• Max. pressure: 3.0 bar
