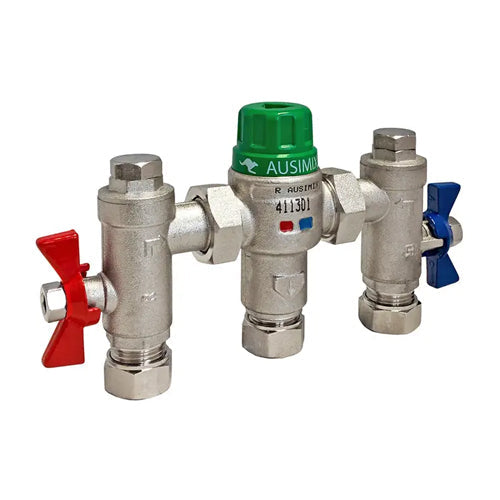

RWC Ausimix TMV3 Thermostatic Mixing Valve 4-in-1 - 15mm - HEAT110780

Description

AUSIMIX Thermostatic Mixing Valves provide high-performance accurate temperature control and rapid failsafe on either hot cold water supply failure for both domestic and commercial applications. AUSIMIX Thermostatic Mixing Valves are available with either 4-in-1 fittings and have a unique temperature adjustable tool incorporated into the cap as well as flat-faced union connections for ease of maintenance.

Features & Benefits

• Thermostatic mixing valve to provide accurate temperature control
• Rapid failsafe on hot or cold failure
• Provides stable mixed water temperature
• Includes strainer and check valves in tail pieces
• Includes isolator valves
• Unique temperature control in cap
• Flat-faced union connectors
• Ease of maintenance and quick install
• Available with SharkBite connectors
• TMV2 and TMV3 approved

Specification

• Connections: 15mm
• Factory Temperature Setting: 38°C
• Temperature Setting Range: 38°C - 46°C
• Temperature Hot Supply: 52°C - 65°C (TMV3) 55°C - 65°C (TMV2)
• Max. Temperature: 85°C
• Temperature Cold Supply: 5-20°C (TMV3) 5-25°C (TMV2)
• Minimum Hot to Mix Differential Temperature: 10°C
• Temperature Stability: +/- 2°C
• Max Pressure Static: 16 Bar (TMV3) 10 bar (TMV2)
• Working High Pressure Dynamic: 1 - 5 Bar (TMV3) 0.5 - 5 Bar (TMV2)
• Working Low Pressure Dynamic: 0.2 - 1 Bar
• Maximum Pressure Loss Ratio: 10:1
• Flow rate, Minimum: 4 lpm
