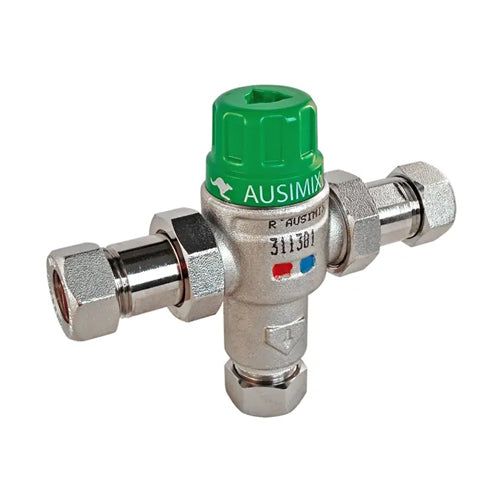

RWC Ausimix TMV3 Thermostatic Mixing Valve 2-in-1 - 22mm - HEAT110755

Description

AUSIMIX Thermostatic Mixing Valves provide high performance accurate temperature control and rapid failsafe on either hot cold water supply failure for both domestic and commercial applications. AUSIMIX Thermostatic Mixing Valves are available with either 2-in-1 fittings and have a unique temperature adjustable tool incorporated into the cap as well as flat faced union connections for ease of maintenance.

Features & Benefits

• Thermostatic mixing valve to provide accurate temperature control
• High performance thermostatic mixing valve
• Versatile protection against scalding
• Rapid failsafe on hot or cold failure
• Provides stable mixed water temperature
• Includes strainer and check valves in tail pieces
• Unique temperature control in cap
• Ease of Maintenance and quick install
• TMV2 and TMV3 Approved

Specification

• Connections: 22mm Compression
• Factory Temperature Setting: 38°C
• Temperature Setting Range: 38°C - 46°C
• Temperature Hot Supply: 52°C - 65°C (TMV3) 55°C - 65°C (TMV2)
• Max. Temperature: 85°C
• Temperature Cold Supply: 5-20°C (TMV3) 5-25°C (TMV2)
• Minimum Hot to Mix Differential Temperature: 10°C
• Temperature Stability: +/- 2°C
• Max Pressure Static: 16 Bar (TMV3) 10 Bar (TMV2)
• Working High Pressure Dynamic: 1 - 5 Bar (TMV3) 0.5 - 5 Bar (TMV2)
• Working Low Pressure Dynamic: 0.2 - 1 Bar
• Maximum Pressure Loss Ratio: 10:1

• Flow Rate, Minimum: 4 lpm
