Description
The Reliance Water Controls selection of pressure gauges suit a variety of applications and pressure ranges. All their pressure gauges are both PSI and Bar registered and are available with back inlets, bottom inlets or top inlets to suit any installation method required. In addition, each of the Reliance Water Controls pressure gauges has a high-pressure indicator to show the highest pressure the gauge can register.
Features & Benefits

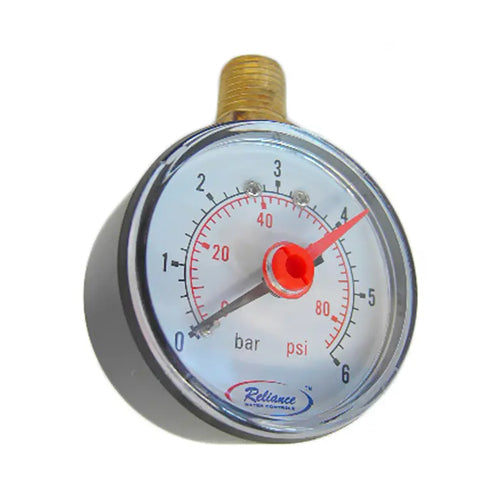

- Top Inlet Pressure Gauge
- 50mm Dial
- Wide selection to suit all applications
- High-pressure indicator shows the highest pressure the gauge registers
- Both PSI and BAR registered
Specification
- Dial Size: 50mm
- Bottom Inlet: 1/4” MBSP
- Pressure range: 0-6 bar
- Ambient Operating temperature: -20°C to +60°C
- Medium Operating temperature: +60°C max
- Accuracy: +/- 2.5% FSD
- Case: ABS plastic, black
- Window: Acrylic, crystal clear
- Pressure element: CU alloy
- Joints: Soldered with tin alloy
- Movement: High precision brass
