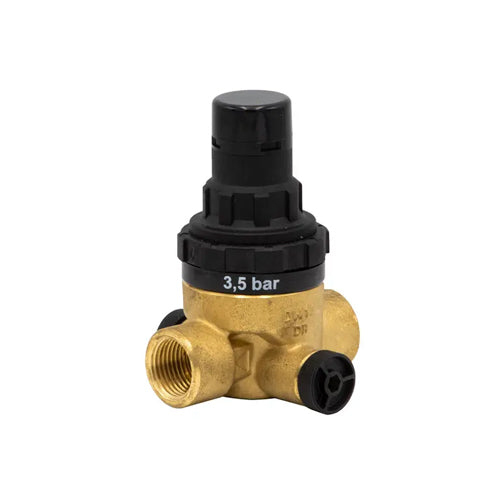

RWC 312 Pre-Set & Locked Pressure Reducing Valve with Gauge Port - 3.5 Bar - 1/2" FBSP - PRED312045
RWC 312 Pre-Set & Locked Pressure Reducing Valve with Gauge Port - 3.5 Bar - 1/2" FBSP - PRED312045
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The 312 Pressure Reducing Valves are predominantly used in domestic installations for protection against excess supply pressure. The pressure reducing valve will protect water systems from fluctuating mains supplies, which can potentially cause damage to any plumbing system. The valves are 'drop tight' and therefore will not allow the pressure to increase (creep) under no-flow conditions. The valve is set and locked at 3.5, which means it is not adjustable. It has a 1/4" test port for gauges to be installed.
Features & Benefits
- 1/2" FBSP - Pre-Set & Locked At 3.5 Bar - 312 Pressure Reducing Limiting Valve with Gauge Port PRED 312 045
- Test pressure: 25 bar (body only)
- Max. inlet pressure: 16 bar
- Set & locked pressure: 3.5 Bar
- Pressure reduction ratio: 10:1
- Maximum temperature: 45°C
- Connection: 1/2" FBSP
- Includes two 1/4" Gauge Port
- Medium: Water, compressed air, Neutral non-adhesive liquids/gases
- WRAS Approved
