Description

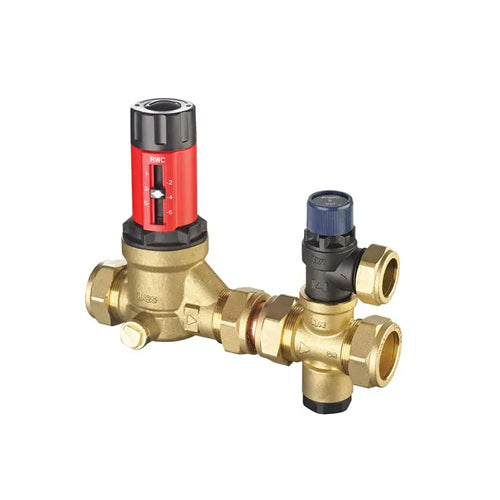

The high flow two-piece inlet control is suitable for all types of unvented water systems, and this inlet control group is for larger domestic and commercial installations where a high flow rate is required to satisfy high demands. Of the two pieces, the first is made up of a 'drop tight' pressure reducing valve meaning the valve will hold its pre-set and locked pressure regardless of it being underflow or no-flow conditions. The second is a core manifold which is a unique valve that incorporates a single check valve providing backflow prevention up to Category 2, a pressure relief valve to ensure the system does not over pressurise and two dedicated connections: one for a balanced cold water take-off and the other for an expansion vessel.
Features & Benefits
- 2 Piece multibloc unvented system control
- 28mm sized compression connections
Specification
- Brand: Reliance Water Controls
- Connections: 28mm
- Pressure Reduction: 2.1 Bar
-
Pressure Relief: 8 Bar
-
Maximum Inlet Pressure: 25 Bar
- Maximum Temperature Pressure: 70°C
-
Pressure Reduction Ratio: 10:1
-
Dimensions: 175mm (H) x 195mm (W)
- Part Number: CWIC351301
