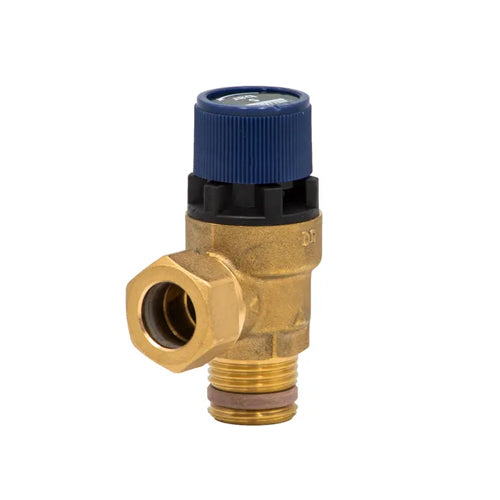

RWC 102 Series Potable Water Pressure Relief Expansion Valve - 5 Bar - 1/2" MBSP x 15mm - PREL102003

Description

Made from hot-pressed brass, the 102 series Pressure Relief valve is predominately used to protect closed-circuit water heating systems from overpressure. It has high-grade fibreglass reinforced plastic cap. Available in ½” or ¾” connections, it also has a set pressure relief range from 3.5 bar to 8 bar with the response pressure indicated on the cap cover.

Features & Benefits

• Potable Water Pressure Relief Expansion Valve
• Reliance (RWC) Series 102

Specification

• Brand: Reliance Water Controls
• Connection: 1/2" MBSP x 15mm
• Pressure Setting: 5 Bar
• Max. Operating Temperature: 140°C

• Test Pressure of Body: 25 Bar
• Series: 102

• Dimensions: 75mm (H) x 40.50mm (W) x 31mm (D)

• Certifications: WRAS Approved

• Part Number: PREL102003
