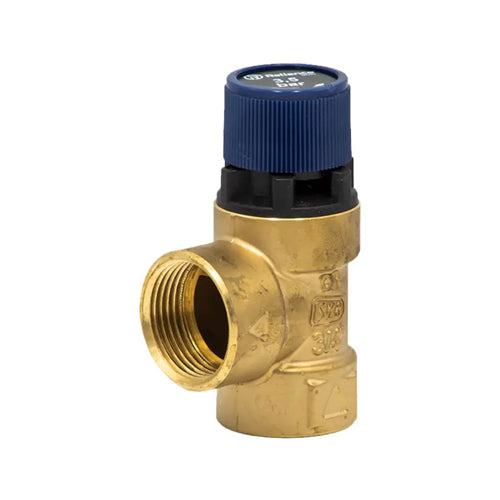

Reliance 102 Series Potable Water Pressure Relief Expansion Valve - 3.5 Bar - 3/4" FBSP x 3/4" FBSP - PREL102045
Reliance 102 Series Potable Water Pressure Relief Expansion Valve - 3.5 Bar - 3/4" FBSP x 3/4" FBSP - PREL102045
- Lead Time: Direct from our Supplier, Usually Next Working Day*
Regular price
£29.93
Regular price
Sale price
£29.93
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Made from hot-pressed brass, the 102 series Pressure Relief valve is predominately used to protect closed-circuit water heating systems from overpressure. It has a high-grade fibreglass reinforced plastic cap. Available in ½” or ¾” connections, it also has a set pressure relief range from 3.5 bar to 8.0 bar with the response pressure indicated on the cap cover.
Features & Benefits
- 102 Series
- 3/4" FBSP x 3/4" FBSP
- Potable Water Pressure Relief Expansion Valve
- Pressure Setting: 3.5 Bar
- WRAS Approved
Specification
Pressure Setting: 3.5 Bar
Series: 102
Connection: 3/4" FBSP x 3/4" FBSP
Max. operating Temperature: 140°C
Test Pressure of Body: 25 bar
Dimensions: W-45.50mm D-31.00mm H-75.00mm
