• RWC 101 Series High Capacity Pressure Relief Expansion Valve - 2 Bar - 1/2" FBSP x 1/2" FBSP - PREL101001
1 1

RWC 101 Series High Capacity Pressure Relief Expansion Valve - 2 Bar - 1/2" FBSP x 1/2" FBSP - PREL101001

RWC 101 Series High Capacity Pressure Relief Expansion Valve - 2 Bar - 1/2" FBSP x 1/2" FBSP - PREL101001

  • Lead Time: 10-14 Working Days*
£15.76
£15.76
Sale Sold out
Shipping calculated at checkout.

Description

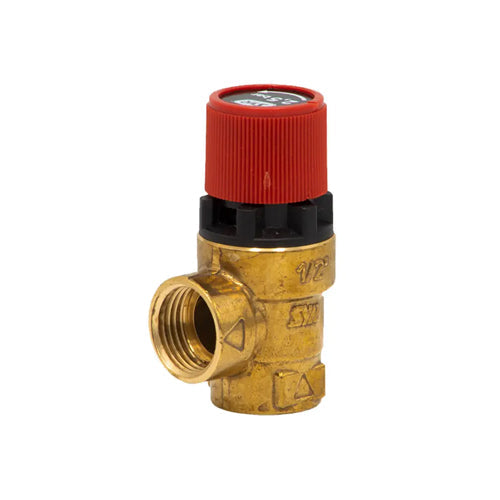

Made from hot-pressed brass, the 101 series Pressure Relief valve is predominately used to protect closed-circuit water heating systems from overpressure. It has high-grade fibreglass reinforced plastic cap. Available in ½” or ¾” connections, it also has a set pressure relief range from 2.0 bar to 3.0 bar with the response pressure indicated on the cap cover.



Features & Benefits

  • 2 Bar
  • 101 Series
  • 1/2" FBSP x 1/2" FBSP
  • High Capacity Heating Pressure Relief Expansion Valve
  • Operating Temperature: 140°C max
  • Test Pressure of Body: 25 bar

Specification

  • Bar Pressure: 2 Bar
  • Series: 101
  • Connection: 1/2" FBSP x 1/2" FBSP
  • Operating Temperature: 140°C max
  • Test Pressure of Body: 25 bar
  • Dimensions: W-40.50mm D-30.00mm H-69.00mm
