RWC 1 Piece Multibloc Inlet Control Valve - 3.5 Bar & 8 Bar - 28mm - CWIC352303
RWC 1 Piece Multibloc Inlet Control Valve - 3.5 Bar & 8 Bar - 28mm - CWIC352303
- Lead Time: 10-14 Working Days*
Regular price
£225.45
Regular price
Sale price
£225.45
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

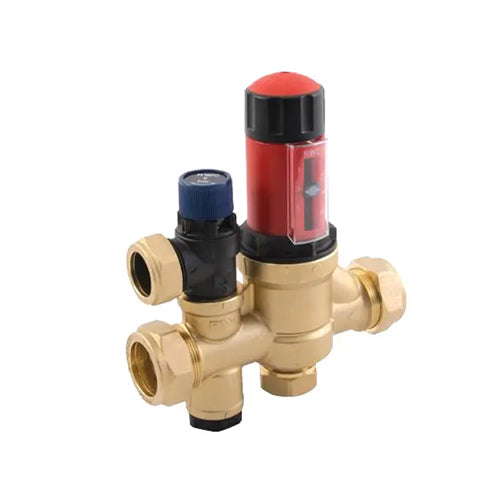

The Reliance Water Controls high flow one-piece multibloc inlet control valve is for larger domestic and commercial installations where a high flow rate is required to satisfy high demands. The valve combines a pressure reducing valve, single check valve and pressure relief valve. The one-piece body is used to minimise leak potential and alongside the two dedicated connections, one for the expansion vessel and the other for balanced water takeoff, the valve is suitable for all types of the unvented water system.
Features & Benefits
- 1 Piece 28mm Multibloc System Inlet Control Valve
- 28mm size compression connections
- Pressure Reducer Set at 3.5 bar
- Pressure Relief Set at 8.0 bar
- One-piece Multibloc to minimise leak potential
- Combined Pressure Relief and Pressure Reducing Valve
- Adjustable dial
- Includes single check valve & integral strainer
- Suitable for large domestic & commercial installation with a high flow rate
- Check valve provides backflow prevention up to category 2
- WRAS approved
Specification
- Pressure Reduction: 3.5 bar
- Pressure Relief: 8.0 bar
- Connection Size: 28mm
- Maximum Inlet Pressure: 25 bar
- Maximum Temperature Pressure: 70°C
- Pressure Reduction Ratio: 10:1
