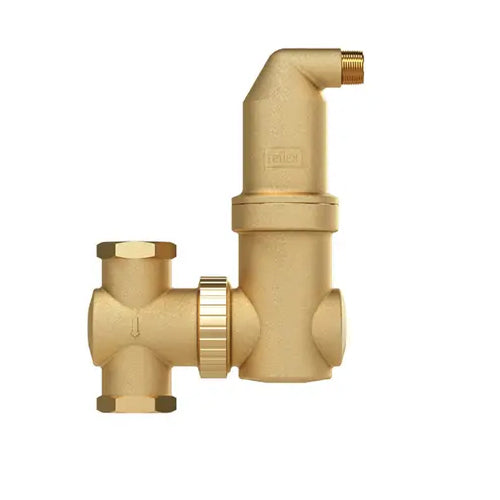

Reflex Exvoid Twist Rotatable Air Separator - 22mm - 9257200
Reflex Exvoid Twist Rotatable Air Separator - 22mm - 9257200
£188.49
Ex. VAT
£226.19
Inc. VAT
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Exvoid Twist
Reflex Evoid Twist air and microbubble separator with 360° rotatable connection for vertical and horizontal pipes in heating and chilled water systems or sealed liquid-filled system circuits. Suitable for the media water and water/glycol mixtures up to a mixing ratio of 50/50%. Fitting for collecting gas bubbles from the liquid flow via optimised separating element or automatic, permanent discharge into the atmosphere via integrated non-shut-offReflex Exvoid T large ventilator.
Features & Benefits
- Air & Microbubble separator
- 360°C rotatable connection for horizontal & vertical pipes
- Suitable for heating and chilled water systems
- Suitable for sealed, liquid-filled systems
Specification
- Type: AT 22
- Housing material: MS
- Installation model: horizontal/vertical
- System connection: 22mm
- Max. operating pressure: 10 bar
- Max. operating temperature: 110 °C
- Length: 109 mm
- Height: 218 mm
- Diameter: 63 mm
