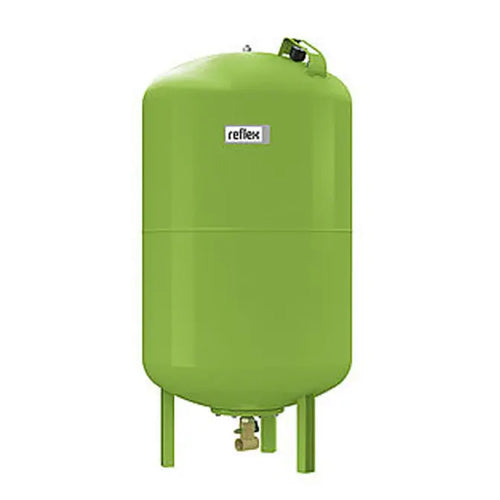

Reflex Anti-Legionella Flow Through Expansion Vessel - 100 Litre - PVA100G - 7309200
Reflex Anti-Legionella Flow Through Expansion Vessel - 100 Litre - PVA100G - 7309200
- Lead Time:
Couldn't load pickup availability
Description
Reflex Flow-Through Expansion Vessels have been designed to prevent stagnation or contamination in the water tanks by keeping water moving. The Altecnic complete range of flow-through expansion vessels are suitable for use with potable water and have been manufactured in carbon steel with a two or three-part weld construction.
The Reflex Flow-Through Expansion Vessel is suitable for temperatures up to 70°C and are resistant to ethylene or proplene glycol mixtures alongside a low gas permeability. The Reflex Flow-Through Expansion Vessel and Flowjet Valve allows for continuous water flow through the bladder of the expansion vessel which helps to minimise stagnation. The Flowjet Valve also allows for isolation should the expansion vessel need to be removed as well as a drain facility and bypass.
Features & Benefits
- Floor Standing Flowthrough Expansion Vessel
- Comes complete with Reflex Flowjet Valve
- External surfaces have a green durable powder-coated finish
- Tested according to the Pressure Systems Directive
- Water-bearing parts corrosion resistant
- Suitable for hospitals & care homes
- Pressure gauge integrated with a gas compartment.
- Shell: Stainless Steel
- Connection: Stainless Steel
- Replaceable butyl-bladder
- WRAS Approved
- 5 Years warranty
Specification
- Capacity: 100 Litre
- Max. working pressure: 10 bar
- Connection: 1 1/4"
- Diameter (mm): 480
- Height (mm): 870
- Weight (kg): 19.2
- Max. operating temperature: 70°C
