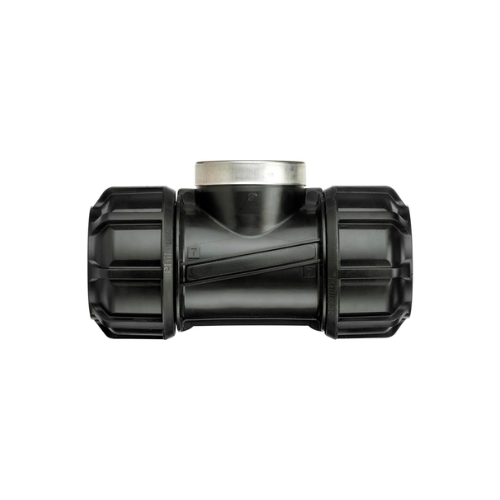

Philmac 3G Metric (Imperial) Tee Female Iron - 25mm (3/4) x 3/4 - 9432

Delivery within 1-5 Working Days*

3G Metric/Imperial

The complete solution

Patent protected the Metric/Imperial plastic compression fitting is the product of the company’s unrelenting commitment to continuous improvement and a culture based on innovation and ingenuity.

Seven into one will go

Connects:

• Blue MDPE BS EN12201-2
• Black MDPE BS EN12201-2
• Low Density Class C BS 1972
• Low Density Class D BS 1972
• High Density Class C BS 3284
• High Density Class D BS 3284
• IRS 135 Heavy Gauge BS 1972/61

No need for inserts or dedicated fittings

When installing on potable water installations, liners must be used with metric pipe sizes 20, 25, 32, 50 and 63mm. No pipe preparation is needed and no force is required to push the pipe past the seal, so installation could not be faster or easier. Simply insert the pipe fully into the fitting and then tighten the nut.

No special tools are required and there is no need to disassemble the fitting before use because the Metric/Imperial compression fitting is supplied pre-assembled and ready to use.

Materials and components

• Nut: acetal
• Body: polypropylene
• Split Collet: acetal
• Seal: EPDM rubber

Long-lasting, corrosion resistant and easy to install, Philmac fittings have proven themselves in irrigation and commercial applications all over the world. They are the fitting choice for both contractors and installers.

Fast and easy installation

Slide and Tighten technology: 3G compression fittings incorporate all the benefits of Philmac’s unique Slide and Tighten technology. No pipe preparation is needed, no force is required to push the pipe past the seal. This means faster and easier installation because the fitting seals on the outside of the pipe. Simply insert the pipe into the fitting until the first point of resistance is felt, and then tighten the nut.

Compact design: The size of the Philmac 3G compression fitting has been kept to a minimum, making the fitting ideal for use in confined areas.

Easy disassembly: The fitting has been designed so the grip ring is released as soon as the nut is backed off, making disassembly easy.

Complete security

Visual stop: With metric pipe, the body flange on the 3G compression fitting acts as a visual stop to indicate when the nut is tightened. There is no benefit in further tightening of the nut.

No loose components: If the nut is removed there is no danger of losing components, as the grip ring and seal ring are retained in the body of the fitting.

Dynamic sealing method: As the nut is tightened, the seal is compressed between the pipe and the fitting body.

Designed to minimise pipe twist: The fitting has been designed to minimise pipe twist as the nut is tightened. Maximum pipe twist is approximately a quarter turn compared with one and a half turns with many other fittings.

Approvals: Philmac 3G compression fittings are WRAS approved for potable water use.

Lead free

The Philmac range of 3G compression fittings is completely free of lead.

High performance materials

Manufactured from engineered materials: 3G compression fittings are manufactured from lightweight high performance thermoplastic materials that, unlike metal fittings, resist corrosion, significantly minimising maintenance, repairs and long-term costs. The materials are non-toxic and taint-free.

Pressure rated: Philmac 3G is pressure rated to 16 bar at 20°C.

Complete coverage

Wide range: The 3G compression fittings range is comprehensive: straight and reducing couplers, tees, elbows, male and female adapters and caps ranging from ½” to 2”.

*Stock dependant
