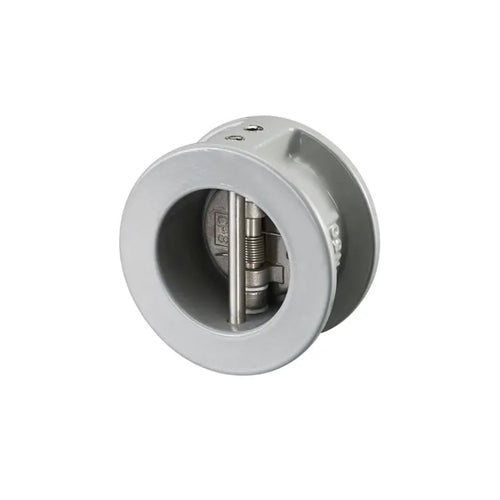

Oventrop Double Swing Type Wafer Model Check Valve - DN250 - 1072657

Approx Lead Time: 5 Working Days

• DN250 Double Swing Type Wafer Model Check Valve
• Double swing type check valve
• Wafer model
• PN 16 suitable for installation between PN 16 flanges according to DIN 1092-2
• Body made of cast iron
• Stainless Steel Flaps
• For installations with horizontal or vertical pipework
• In installations with horizontal pipework, the stem of the flap must be in vertical position
• In installations with vertical pipework, the fluid must be transported from the bottom to the top with due consideration of the flow direction
• Max. operating pressure: 16 Bar
• Min. operating temperature: 0°C
• Max. operating temperature: 120°C
