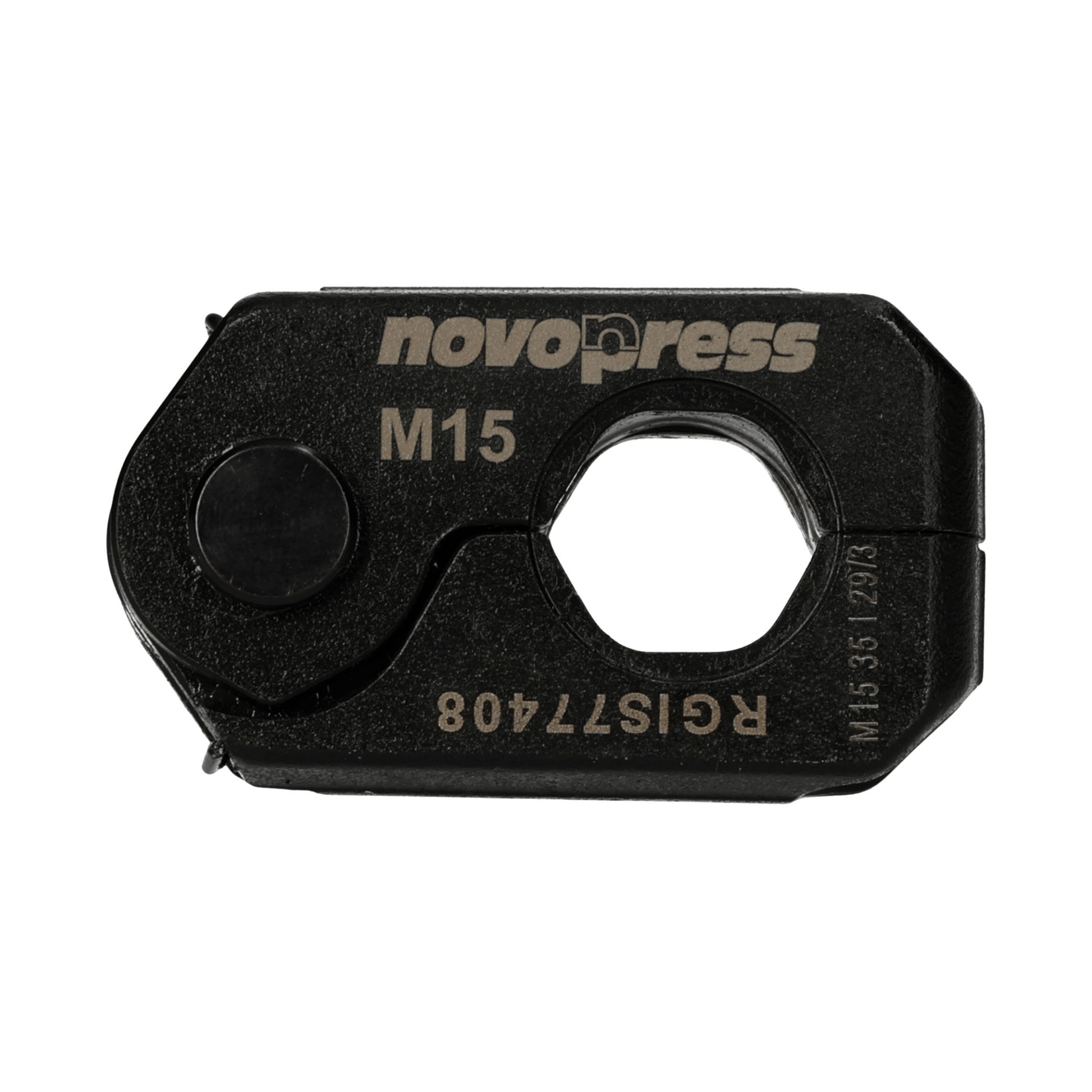

Novopress Pivoting Ring - SPR M15 - 50694-50

Please note:

Pivoting pressing rings can only be used in combination with adapter jaws.

Use this adapter jaw for the ACO-103 crimping tool: SZB101

For the ECO-203, EFP-203, ACO-203 and ACO-203XL crimping tools, use this adapter jaw: SZB201

Advantages of the pivoting pressing rings at a glance

• Small dimensions and infinitely adjustable up to 180°: Ideal for one-handed operation and maximum flexibility when used in confined spaces.
• Suitable for metal systems up to 35 mm in size: For various profiles (M and V profile).
• Use in installation spaces that are difficult to access: Perfect for tight, angled areas.

Compatibility: Can be used with Novopress devices ACO103 and all 203 pressing devices (ACO203, ECO203 etc.) as well as their predecessors.

Pivoting rings from Novopress

More flexibility in hard-to-reach areas

As a pioneer in the field of pressing technology, Novopress has been setting standards for decades and offers you outstanding solutions for sanitary, heating and air conditioning technology. The newly developed pivoting press rings for tight or angled installation situations in dimensions up to 35 mm are an important part of our range.

The pivoting press rings, which are always used with an adapter jaw, are available for metal systems in various nominal widths (15 mm, 22 mm, 28 mm, 35 mm) and profiles (M, V, TH and U profile). They are perfect for connecting pipes and fittings, making them an indispensable tool in modern installation technology.

What characterises the pivoting press rings from Novopress

These press rings from Novopress are characterised by their unique, pivoting design. It enables fast, precise and efficient installation, even in hard-to-reach areas. Thanks to the compact design, you can pivot the press rings to the maximum angle, which makes handling in tight or angled installation spaces much easier.

Compatibility with our pressing devices

The pivoting press rings are compatible with Novopress ACO103 devices (adapter jaw SZB101 required) and all 203 pressing devices ACO203, ECO203 etc. as well as their predecessors (adapter jaw SZB201 required). This compatibility ensures that you can continue to use your existing pressing tools efficiently without having to invest in new equipment. The high quality and reliability of Novopress pressing technology also ensures a long service life for your pressing tools.

More pressing tools from Novopress:

• Pressing jaws
• Press slings
• Adapter jaws for pivoting press rings

Technical Details

• Nominal widths metal: 15 mm / 22 mm / 28 mm / 35 mm
• Available adapter jaws: SZB101 / SZB201
• Weight: 0.22-0.51kg
• Available profiles M, & V
