Novopress ACO103 - V-Profile Bundle - ACO103 Tool, 2x Batteries, Charger, 15mm-35mm Jaws & Case

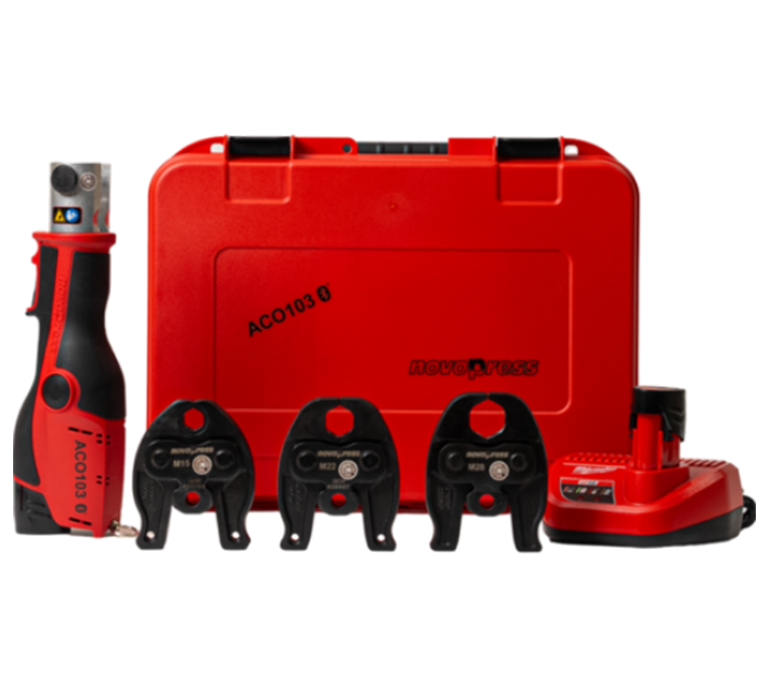

This Bundle comes with:

1x ACO103 Tool
2x Batteries
1x Charger
1x V-Profile 15mm Jaw
1x V-Profile 22mm Jaw
1x V-Profile 28mm Jaw
1x V-Profile 35mm Jaw
1x Case

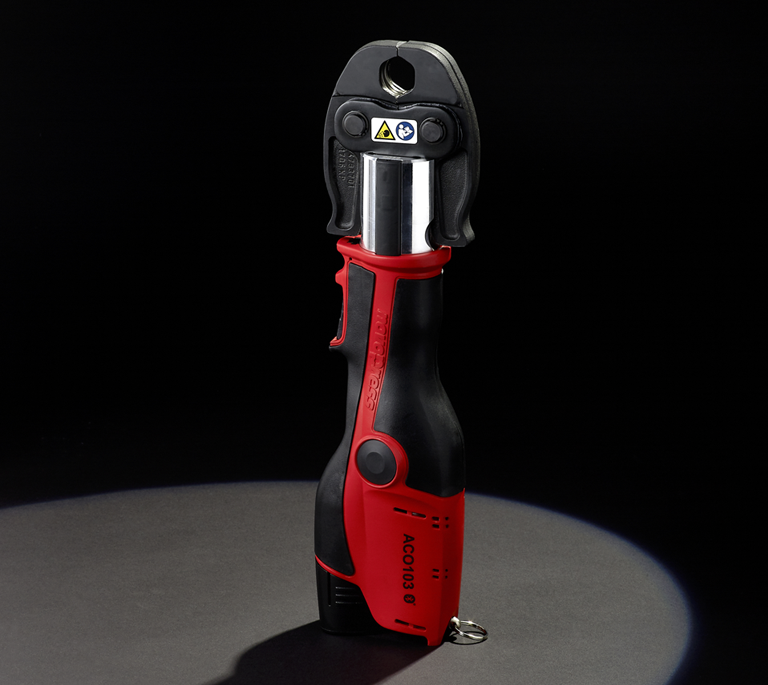

The new pressing unit ACO103 is the successor of the well-known ACO102 and comes with additional features which makes installations even easier and safer. The tool is suitable for dimensions up to 35 mm for metal and 40 mm for plastic. Thanks to the new, implemented bluetooth® technology, device-related data can be requested via the NovoCheck app.

In addition, the ACO103 is equipped with an illumination of the press area as well as an electronic bolt retention. The handy LED- display gives information about the battery status and provides insights into potential fault indications of the press tool. Thanks to its compact size, the tool can be comfortably operated with one hand and thus enables safe operations, even in difficult installation situations.

Advantages

• Rotatable head
• Powerful Milwaukee® Lithium-ion batteries
• Illumination of press area
• Automatic pressing cycle
• One-hand operation
• Status indication with LED display
• Electronic bolt retention
• Analysis of the pressing tool performance via NovoCheck app.

Technical Data

Dimensions: Metal pipe up to 35mm / Plastic pipe up to 40mm
Weight (without battery): 1.6kg
Length: 320mm
Width: 98mm
Height: 72mm
Power consumption: 240W
Piston force: 19kN
Piston stroke: 30mm
Battery: Milwaukee® M12­­™ battery system
Battery capacity: up to 250 pressing cycles
Charging time: 45-75 Minutes
