NovaTherm Dualmix Stainless Steel Manifold Assembly inc Pressure Gauge and Air Vent - 9 Port - NMSS-1F-3/4x9

Delivery within 1-3 Working Days*

The NovaTherm premium stainless-steel manifold supplied by Kings Plumbing Supplies is a preassembled unit for use within either the underfloor heating systems or with wall hung radiator systems. Backed by a full industry 25 year guarantee.

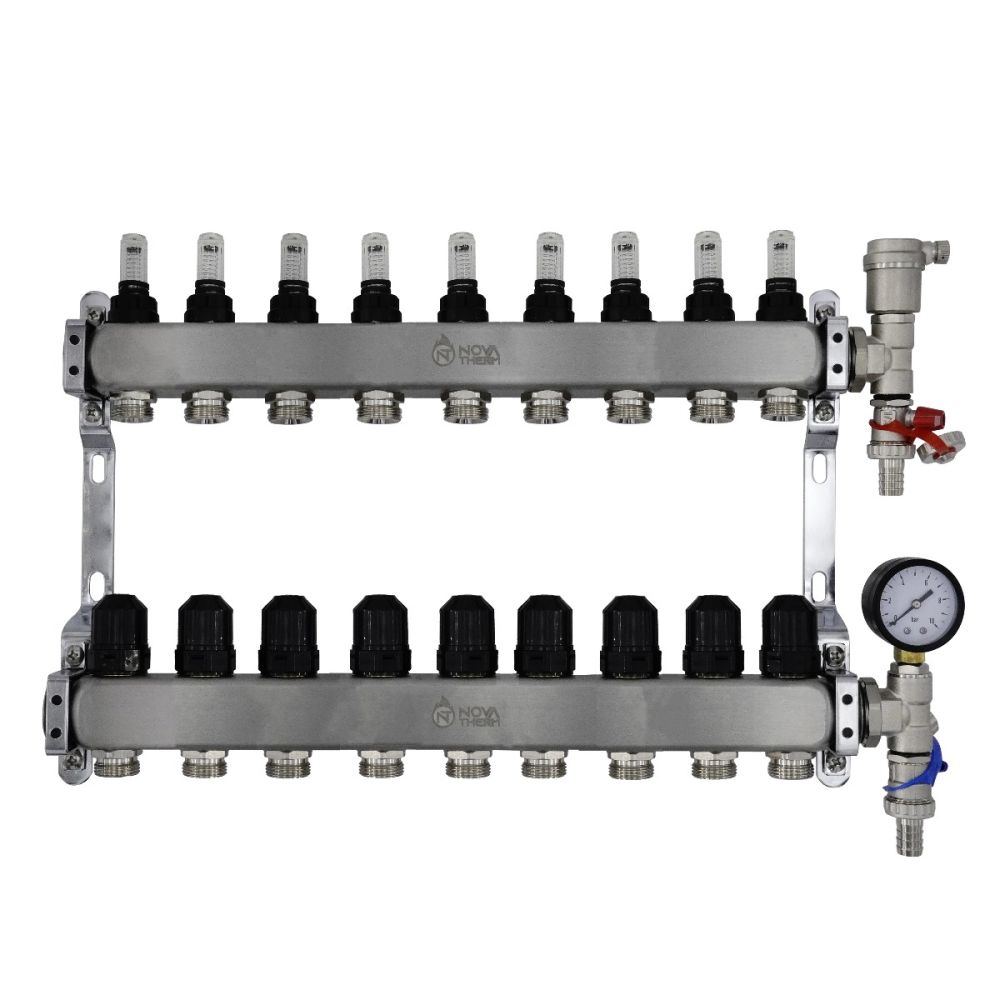

The unit is preassembled, complete with an auto air vent (AAV), 10 bar pressure gauge, flow meters with 0-5 l/m indicators and fill and drain valves. Compatible with various pipe sizes up to 20mm. Integrated filling and drain off valves ease long term maintenance.

Connector Cores sold separately.

• Working Temperature: 5°C to 100°C
• Maximum Working Pressure: 10 Bar
• Flow Meter Scale: 0 - 5 Litres per min
• Main Connections: G1"F (ISO 228-1)
• Outlets: G3/4"M (ISO 228-1)
• Centre Distance: 50mm
• Body: Stainless Steel
• Seals: EPDM
• Handle: ABS
• Springs: Stainless Steel
• Brackets: Steel
• Adaptors: Brass
• 25 Year Guarantee
• WRAS Approved

Be sure to check out our kits, and if you are looking for a personal touch, please send your drawings and plans to sales@plumblikeaking.co.uk, we offer free quick designs and quotations, should you wish to proceed with your order we will supply a free detailed CAD Design.

*Stock dependant
