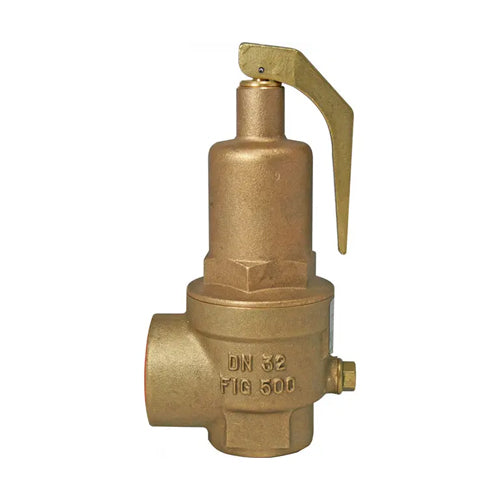

Nabic Fig 500 High Lift Pressure Relief Valve - 1 1/4" FBSP x 1 1/2" FBSP - N-500-032
Nabic Fig 500 High Lift Pressure Relief Valve - 1 1/4" FBSP x 1 1/2" FBSP - N-500-032
Shipping calculated at checkout.
Couldn't load pickup availability
Approx. Lead Time: 2 Working Days
Features & Benefits
- Next Working Day Delivery if Ordered Before 4pm
- The FIG500 High Lift Safety Valve has been designed primarily for use on unvented hot water heating systems where a high capacity, emergency steam relief capability is required
- High capacity and resilient PTFE seating also make the Fig 500 ideal for steam, air and inert gas applications
- Note: To complete your order, please confirm Bar pressure via email after ordering
Specification
- 1 1/4" FBSP (Inlet) x 1 1/2" FBSP (Outlet) screwed connections
- Body material: Gunmetal
- Maximum set pressure: 12.5 Bar
- Maximum temperature: 195°C
