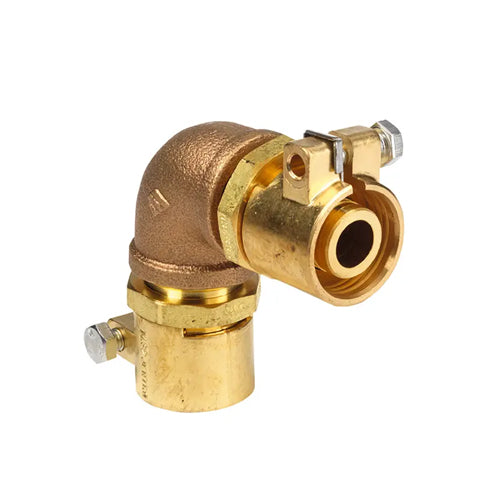

Microflex PE-X to PE-X Elblow - 75/6.8mm - MJ9075/68
Microflex PE-X to PE-X Elblow - 75/6.8mm - MJ9075/68
Shipping calculated at checkout.
Couldn't load pickup availability
Approx Lead Time: 4 Working Days
Description
This elbow coupling is for use in piping systems equipped with transport pipes for heating, cold or cooling water applications. The coupling has a long supporting pipe for optimal clamping, a conical outside thread connection and a clamping ring with a stainless steel bolt. The included remote plate makes it easier to fit the coupling.
Features & Benefits
- 75/6.8mm - Microflex PE-X to PE-X Elbow Coupling - MJ9075/68
- Max. operating pressure: 6 bar (16 bar)
- Max. fluid temperature: +95°C (+25°C)
- PE-Xa and PE pipes: SDR 11
- Supporting pipe material: CW602N
- Clamping ring material: CW602N
- PE-X dimensions: 75/6.8mm
- PE-X connections: 75 x 75mm
- Thread connections: 2 1/2" x 2 1/2"
