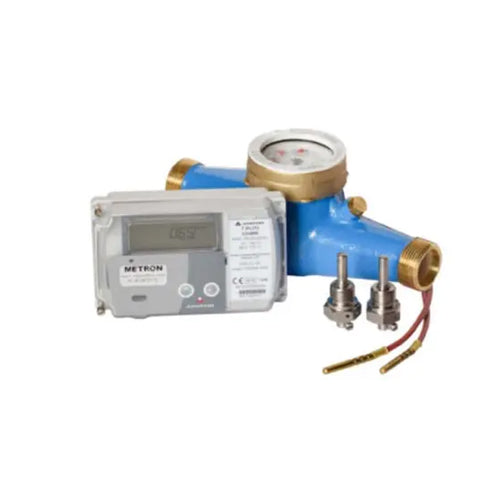

Metron MKCET Heat Meter Pulsed 30°C with Integrator and Sensors - 1/2" MBSP - 15MKCET
Metron MKCET Heat Meter Pulsed 30°C with Integrator and Sensors - 1/2" MBSP - 15MKCET
Couldn't load pickup availability
Approx Lead Time: 2 Working Days
Description
The Metron 15MKCET Heat Meter is designed with the highest quality choice of construction materials in mind to guarantee long operational life. The heat meter is used for measuring the temperature difference between the flow/return temperatures and flow rate of the system. The easy to install unit displays the energy consumption as Kwh as well as displaying the flow and return temperatures, making this device extremely user friendly. The Metron 15MKCET has a pulse output as standard and provides the option of different interfaces if required. These RHI compliant meters have a non-volatile memory organised to a real time calendar for accurate and easy to understand readings. The package consists of a flow sensor, flow/return sensor, immersion pockets and LQM-III Integrator.
Features & Benefits
- 1/2" MBSP Metron MKCET Heat Meter Pulsed 30°C with Integrator and Sensors - 15MKCET
- Heat meter for measuring total energy in heating and cooling systems
- 1/2" MBSP * Volt free pulse output as standard
- Optional interfaces are available
- Suitable for chilled water circuits
- Suitable for water up to 30°C
- MID/EN1434 RHI Compliant
- Displays flow and return temperatures
- Lithium battery 7 year life
- WRAS Approved
Specification
- Connection: 1/2" MBSP
- Integrator Enclosure Rating: IP54
- Nominal flow rate: 1.25 m3/h
- Max. flow rate: 3 m3/h
- Power Supply: Lithium battery 7 year life
- Interface: Pulsed output as standard
- Length: 190 mm
- Height: 70 mm
