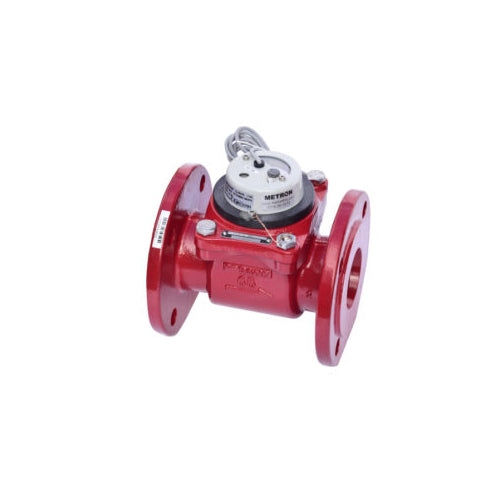

Metron Class B Woltmann Pulsed Hot Water Meter 90°C - DN50 Flanged - 50MKWEHP
Metron Class B Woltmann Pulsed Hot Water Meter 90°C - DN50 Flanged - 50MKWEHP
- Lead Time: 2-3 Working Days*
Couldn't load pickup availability
Description
The Metron 50MKWEHP Woltmann hot water meters are designed with the highest quality choice of construction materials in mind to guarantee long operational life and reliability. They come with a pulsed output as standard, which will give a pulse signal at a pre-set value. This allows the meter to be read remotely via a pulse counter or Building Management System (BMS).These utility meters are designed for applications such as domestic dwellings, commercial, industrial and agricultural applications. They can be fitted either vertically or horizontally and the frost resistant "Superdry" dial is made for easy readings in any weather conditions. The complete metering unit is easily removed from the meter body for any maintenance. The 50MKWEHP Woltmann meters are suitable for hot water up to 90°C and can be installed in horizontal or vertical situations.
Features & Benefits
- DN50 Flanged Metron Hot Water 90°C Class B Dry Dial Woltmann Pulsed Water Meter - 50MKWEHP
- Woltmann water meter for hot water systems
- DN50 flanged connection
- PN16
- Pulsed output
- Easy to remove complete metering unit
- B-Class in the horizontal position
- Frost resistant super dry dial
- Suitable for horizontal and vertical fitting
- Suitable for high flow rates
- Large easy to read dial with numbered rolls
- WRAS Approved
Specification
- Connection: DN50 Flanged
- Maximum Pressure: PN16
- Class: B
- Pressure drop: < 1 bar
- Nominal flow rate: 15 m3/h
- Max. flow rate: 30 m3/h
- Minimum Reading: 1
- Maximum Reading: 1000000
- Weight: 12.4
- Width: 200
- Height: 235
*Stock dependant
