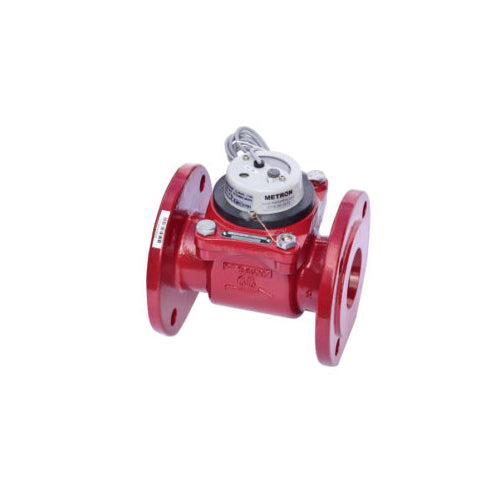

Metron Class B Woltmann Hot Water Meter 90°C - DN100 Flanged - 100MKWEH
Metron Class B Woltmann Hot Water Meter 90°C - DN100 Flanged - 100MKWEH
Couldn't load pickup availability
Approx Lead Time: 2 Working Days
The Metron 100MKWEH Woltmann hot water meters are designed with the highest quality choice of construction materials in mind to guarantee long operational life and reliability. These utility meters are designed for applications such as domestic dwellings, commercial, industrial and agricultural applications. They can be fitted either vertically or horizontally and the frost resistant "Superdry" dial is made for easy readings in any weather conditions. The complete metering unit is easily removed from the meter body for any maintenance. The 100MKWEH Woltmann meters are suitable for hot water up to 30°C and can be installed in horizontal or vertical situations.
Features & Benefits
- DN100 Flanged Metron Hot Water 90°C Class B Dry Dial Woltmann Water Meter - 100MKWEH
- Woltmann water meter for hot water systems
- DN100 flanged connection
- PN16
- Easy to remove complete metering unit
- B-Class in the horizontal position
- Frost resistant super dry dial
- Suitable for horizontal and vertical fitting
- Suitable for high flow rates
- Large easy to read dial with numbered rolls
- WRAS Approved
Specification
- Connection: DN100 Flanged
- Maximum Pressure: PN16
- Class: B
- Pressure drop: < 1 bar
- Nominal flow rate: 60 m3/h
- Max. flow rate: 120 m3/h
- Minimum Reading: 1
- Maximum Reading: 1000000
- Weight: 18
- Width: 250
- Height: 265
