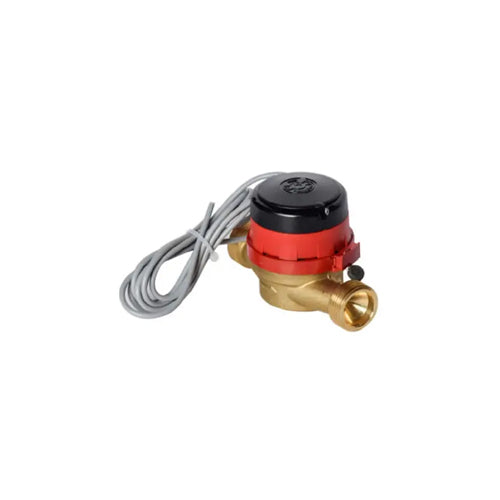

Metron Class B Pulsed Single Jet Hot Water Meter 90°C - 3/4" MBSP - 20MKSJHP
Metron Class B Pulsed Single Jet Hot Water Meter 90°C - 3/4" MBSP - 20MKSJHP
Couldn't load pickup availability
Approx Lead Time: 2 Working Days
Description
The Metron 20MKSJH single jet water meters are designed with the highest quality choice of construction materials in mind to guarantee long operational life and reliability. They come with a pulsed output as standard, which will give a pulse signal at a pre-set value. This allows the meter to be read remotely via a pulse counter or Building Management System (BMS). These utility meters are designed for applications such as domestic dwellings, commercial, industrial and agricultural applications. They can be fitted either vertically or horizontally and the frost resistant "Superdry" 360°C dry dial with 8 counters is made for easy readings in any weather conditions. The 20MKSJH meters are suitable for hot water up to 90°C and can be installed in horizontal or vertical situations.
Description
- 3/4" MBSP Metron Hot Water 90°C Class B Single Jet Dry Dial Pulsed Water Meter - 20MKSJH
- Single jet water meter for hot water systems
- 3/4" MBSP union connections
- Pulsed output
- "Superdry" 360°C rotary super-dry clockwork dial
- Single tangential jet
- Supplied with brass coupling
- B-Class in the horizontal position
- Suitable for horizontal and vertical fitting
- Easy reading via 8 counters
- Certified anti-frost resistance
- Complete reliability and long operational life
- WRAS Approved
Specification
- Connection: 3/4" MBSP Union Connection
- Maximum Pressure: 16 Bar
- Class: B
- Pressure drop: < 1 bar
- Nominal flow rate: 2.5 m3/h
- Max. flow rate: 5 m3/h
- Minimum Reading: 0.05
- Maximum Reading: 99.999
- Weight: 1
- Length: 130
- Width: 72
- Height: 71
