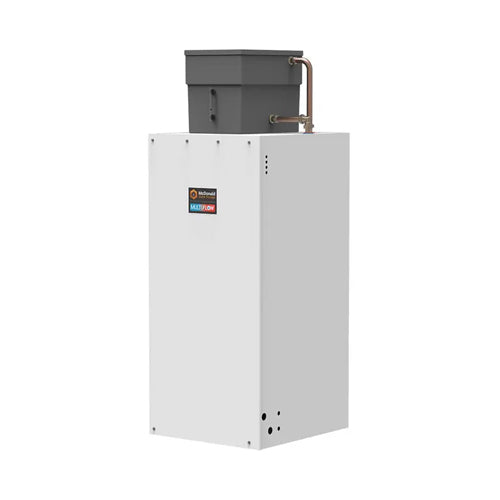

McDonald Water Storage Multiflow Open Vented Boiler Compatible Water Storage - 120 Litres - TMF120OV

McDonald Water Storage Multiflow Open Vented Boiler Compatible Water Storage - 120 Litres - TMF120OV

Shipping calculated at checkout.
 More payment options

Approx. Lead Time: 6 Working Days

Description

The MULTIflow acts as a perfect Gledhill PulsaCoil replacement option, but by incorporating the internal heat exchanger to generate the hot water, there are no costly pumps, controls or extra electrical supplies required.

The MULTIflow Multiflow Open Vented Boiler Compatible Water Storage is a direct thermal store, but with the additional flexibility to incorporate an open vented boiler, to provide mains pressure hot water.

The thermal store approach can suit multiple installation applications, including an open vented boiler and/or off-peak electricity to aggregate the supply to heat the store. This provides domestic hot water when it is required, keeping running costs for the householder down to a minimum.

Being open vented it is inherently safe, and therefore does not require any discharge pipework associated with unvented cylinders, which can prove problematic in apartment installations.

The design of the MULTIflow also means there is no requirement for costly pumps or additional electronic controls to produce the hot water.

If you are looking for an indirect thermal store for a sealed system boiler or central plant boiler, please click here





Features & Benefits

  • Provides the perfect replacement solution for all Gledhill PulsaCoil models
  • Easy to install - does not require G3 certification
  • Delivering mains pressure hot water with built in scald protection
  • Flexibility to incorporate an open vented boiler
  • Requires no annual maintenance
  • No costly pumps or electronic controls required
  • All our thermal stores are manufactured from copper - kills 99% bacteria
  • No risk of legionella as hot water is instantaneously heated
  • Manual fill F&E tank supplied as standard (optional automatic fill kit available)

Specification

  • Brand: McDonald Water Storage
  • Capacity: 120 Litre, 150 Litre, 180 Litre, 210 Litre
  • Connection: 22mm Compression
  • Maximum Incoming Pressure to Pressure Reducing Valve: 12 Bar
  • Insulation Thickness: 50mm
  • Replaces: Gledhill Pulsacoil
  • Dimensions (Height x Width x Depth):
    120 Litre: 1000mm x 560mm x 605mm
    150 Litre: 1200mm x 560mm x 605mm
    180 Litre: 1400mm
    x 560mm x 605mm
    210 Litre: 1600mm
    x 560mm x 605mm
  • Weight Empty (Kg):
    120 Litre: 43
    150 Litre: 54
    180 Litre: 65

    210 Litre: 76
  • Standing Loss (Watts):
    120 Litre: 56
    150 Litre: 68
    180 Litre: 77

    210 Litre: 87
  • Standing Loss (kWh/24h):
    120 Litre: 43
    150 Litre: 54
    180 Litre: 65

    210 Litre: 76
  • ErP Rating: C
