Kingspan Watchman & Filter Pack
Kingspan Watchman & Filter Pack
- Lead Time: Direct from our Supplier, Usually 1-2 Working Days*
Couldn't load pickup availability
Description
The ATLAS TANK PACK Watchman & Filter Pack gives you two useful accessories for a domestic heating oil tank.
The pack includes a Watchman Sonic Advanced Tank Contents Gauge and a Teddington OFV1 Oil Filter & Isolation Valve. Together, they help you monitor the oil level in the tank and look after the oil feed line.
The Watchman Sonic gauge lets you check the tank contents from inside the property. As a result, you can keep a closer eye on oil levels without opening the tank.
The Teddington OFV1 combines an oil filter and isolation valve in one compact unit. It helps filter particles from the oil supply. Also, it lets a competent person isolate the oil feed during servicing.
This pack suits many domestic heating oil tank installations. However, you should check the tank outlet, pipework and appliance requirements before fitting.

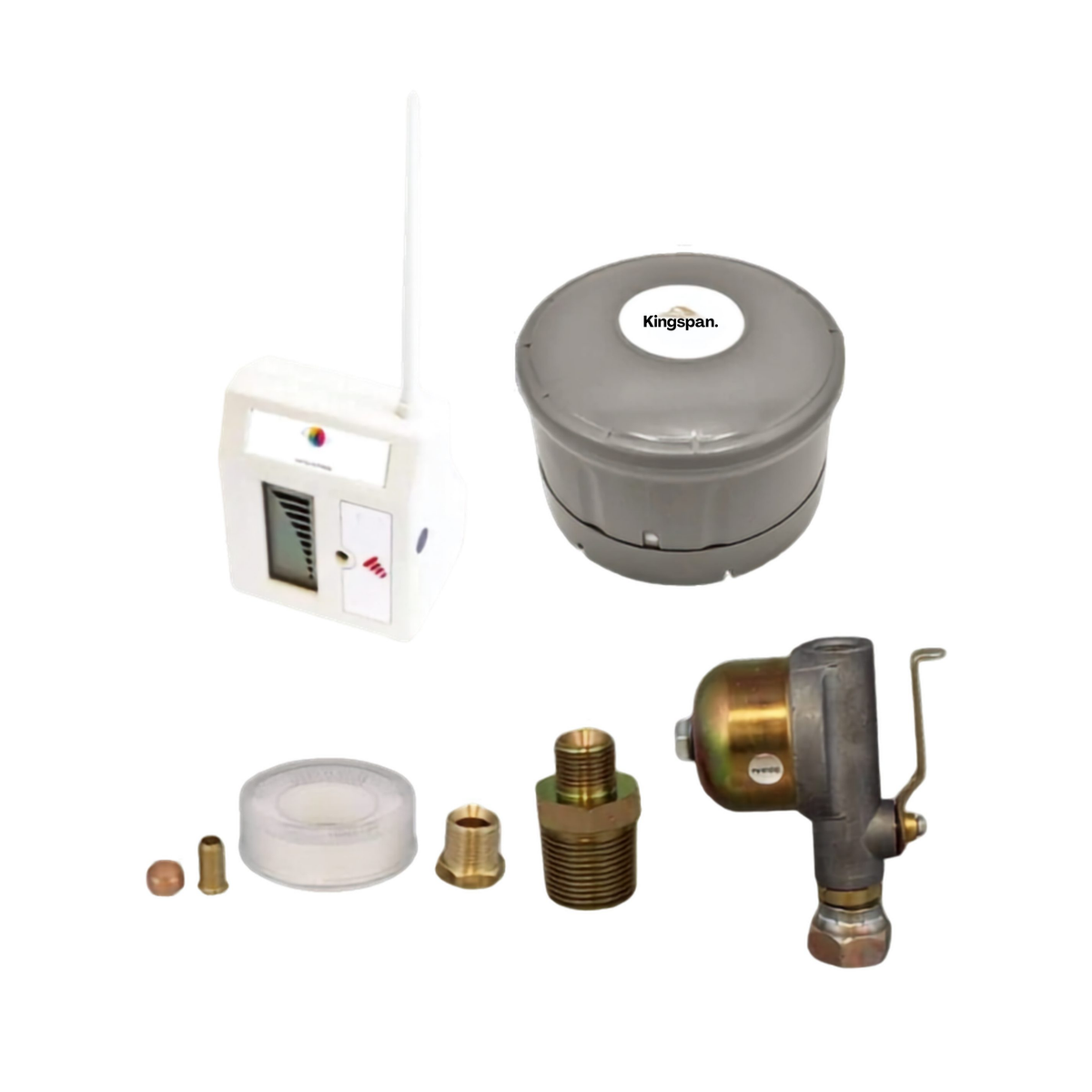

Pack includes
- Watchman Sonic Advanced Tank Contents Gauge
- Teddington OFV1 Oil Filter & Isolation Valve
- 1/2″ to 1″ BSP adaptor
- Anti-crush insert for 10 mm copper pipe
Key features
- Helps monitor oil levels from inside the property
- Includes a Watchman Sonic gauge for tanks under 3 metres high
- Offers up to 200 metres transmitter-to-receiver range
- Includes audible low-level alarm
- Helps filter particles from the oil supply
- Allows oil feed isolation during servicing
- Suits bottom take-off connections on steel or plastic domestic heating oil tanks
- Useful for new tank installations or accessory upgrades
Technical details
- Gauge included: Watchman Sonic Advanced Tank Contents Gauge
- Filter valve included: Teddington OFV1 Oil Filter & Isolation Valve
- Gauge tank height: For tanks under 3 metres high
- Gauge range: Up to 200 metres
- OFV1 inlet: 1/2″ BSP swivel
- OFV1 outlet: 10mm compression with copper olive
- OFV1 flow rate: 151 L/hr kerosene at 1 metre head
- OFV1 filter: Nylon filter
- OFV1 body: Aluminium body with steel filter bowl
Installation note: A competent person should fit this pack as part of a correctly specified heating oil system. Before installation, check the tank connection, pipework route, boiler requirements and fire valve arrangement.
