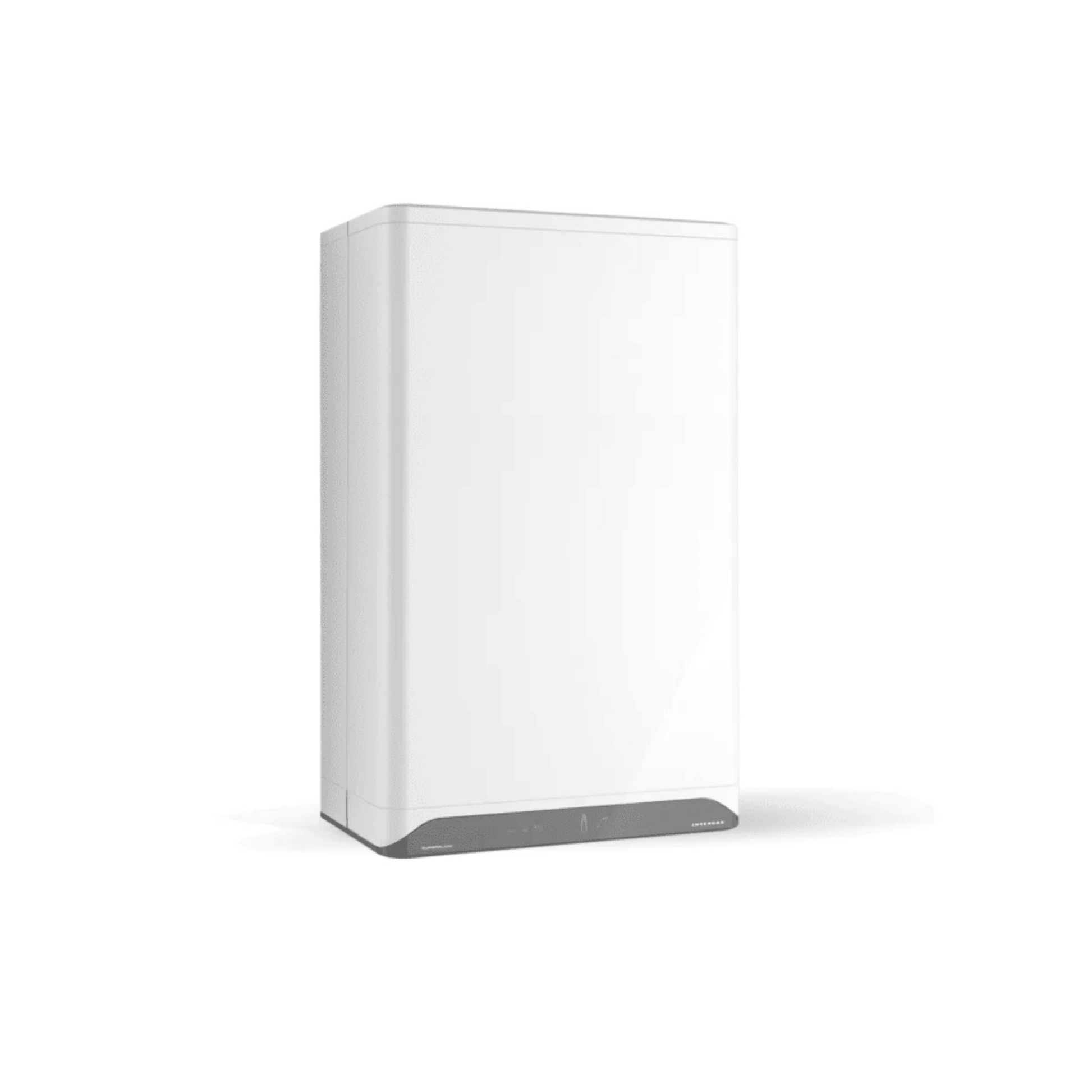

Intergas Superflow 45 - Multipoint Water Heater - 45kW
Intergas Superflow 45 - Multipoint Water Heater - 45kW
- Lead Time: 5-7 Working Days*
Couldn't load pickup availability
SuperFlow
Instantaneous hot water. On demand. On tap. And on and on.
Compact Powerhouse
SuperFlow combines all the advantages of a boiler and cylinder in one small wall-hung unit. It may be compact, but don’t be deceived, this super-efficient water heater packs a punch, delivering constant hot water on demand from the kitchen and utility room to the bathroom and ensuite – all at the same time.
Space saving is just one of its benefits because, like all Intergas boilers, it features our patented aluminium and copper heat exchanger which guarantees the most effective heat transfer, while reducing heat loss to the absolute minimum. Intelligent design and state-of-theart electronics mean SuperFlow is also highly responsive and, because it’s manufactured using the most robust materials, it’s highly reliable too.
The range features two models, the SuperFlow 45 and the SuperFlow 60. The SuperFlow 60 delivers a flow rate of up to 25 liters per minute and both models are equipped with an energy efficiency rating of A. The illuminated touch screen display makes SuperFlow easy to use and control.
The SuperFlow comes with a 12 month parts and labour warranty as standard which increases to two years if registered via MiREG Intergas's installer warranty portal. The warranty on the heat exchanger is 5 years. T&C’s apply.
Wireless Cascade Feature
SuperFlow now includes an innovative wireless cascade feature which allows up to eight units to operate together where a single SuperFlow unit is not large enough. This wireless cascade system is easy to setup and flexible enough for the most demanding applications.
Technical Specifications
| SuperFlow | 45 |
60 |
|
| Rated power (output) | kW | 45 | 60 |
| Capacity profile tap water | XXL | XXL | |
| Energy efficiency class for water heating | A | A | |
|
Domestic Hot Water |
|||
| Nom. load upper value | kW | 6.8-47.2 | 8.3-58.3 |
| Nom. load lower valve | kW | 6.1-42.5 | 7.5-52.6 |
| Nom. output | kW | 41.9 | 52.3 |
| Tap threshold | l/min | 1.5 | 1.5 |
| Domestic hot water flow 40°C | l/min | 20 | 25 |
| Domestic hot water flow 60°C | l/min | 12 | 15 |
| Domestic hot water temperature (standard setting) | °C | 60 | 60 |
| Domestic hot water temperature range | °C | 40-65 | 40-65 |
|
Type Designation |
|||
| Sound power level | LWA dB | 62 | 60 |
| Declared load profile Domestic Hot Water | XXL | XXL | |
| Domestic hot water efficiency | ŋWH % | 85 | 86 |
| Annual electricity use | AEC kWh | 18 | 13 |
| Annual fuse use | AFC GJ | 23 | 22 |
|
Overall Dimensions and Weight |
|||
| Height | mm | 755 | 755 |
| Width | mm | 400 | 450 |
| Depth | mm | 260 | 277 |
| Weight | kg | 27.5 | 30 |
