Inta Zero Swivel Anti-Freeze Professional Installer Pack - 1 1/4" - AFCOMPACKSW35

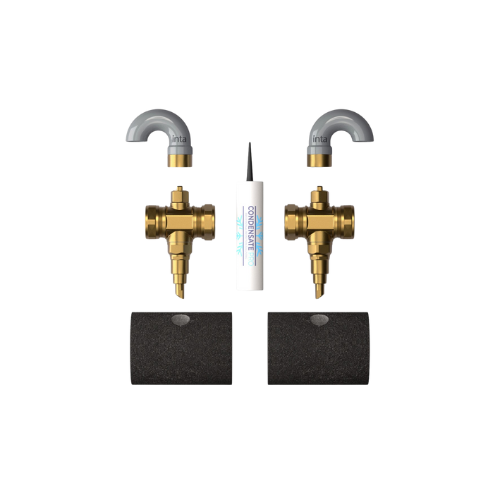

Pack Contents:

• 2x Zero Anti-Freeze Valves
• 2x Zero Valve Insulation Jackets
• 2x Zero Guard Anti-Freeze Protector
• 1x Tube of Condensate Pro Bond & Seal

Insulating

The patented Inta Zero Anti-Freeze Valves have been specifically designed to quickly and accurately react to the water temperature in the heat pump circuit and do not need the influence of the ambient temperature to operate.

Building regulations Part L states that all external fittings on an Air Source Heat Pump System must be fully insulated to reduce heat loss and maintain system efficiency. Inta Zero Anti-Freeze Valves will still maintain correct operation and discharge the water at the same temperature even when a system is correctly insulated.

The Inta Zero Anti-Freeze valves have been Independently tested using a controlled Ambient Temperature between -1°C to 1°C and starting water temperature 10°C to demonstrate the possibility of insulating the Inta Zero Valve without affecting the performance:

Without Insulation

• Water Discharge Temperature = 2.49°C
• Time taken to begin discharge = 1 hour 4mins

With Insulation

• Water Discharge Temperature = 2.03°C
• Time taken to begin discharge = 4hour 3mins

Warning!

If the Inta Zero valves are insulated, then due care must be taken to ensure that all external pipework and fittings are fully and appropriately insulated and sealed. Failure to do so could prevent the proper operation of the Zero valve resulting in colder areas of a system being damaged by freezing. The Anti-vacuum valve must be kept clear at all times, Intatec recommend using the ZEROGUARD anti-vacuum cover (inspected on annual service).

*Stock dependant
