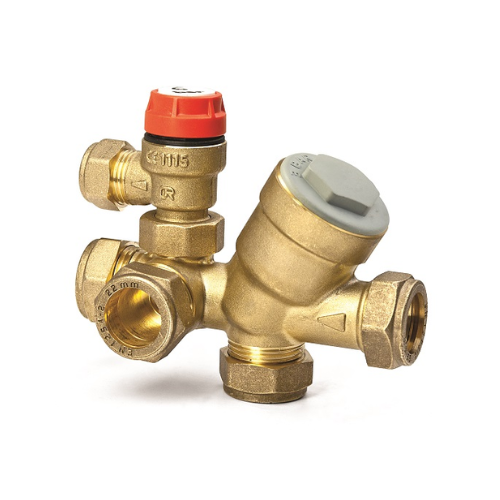

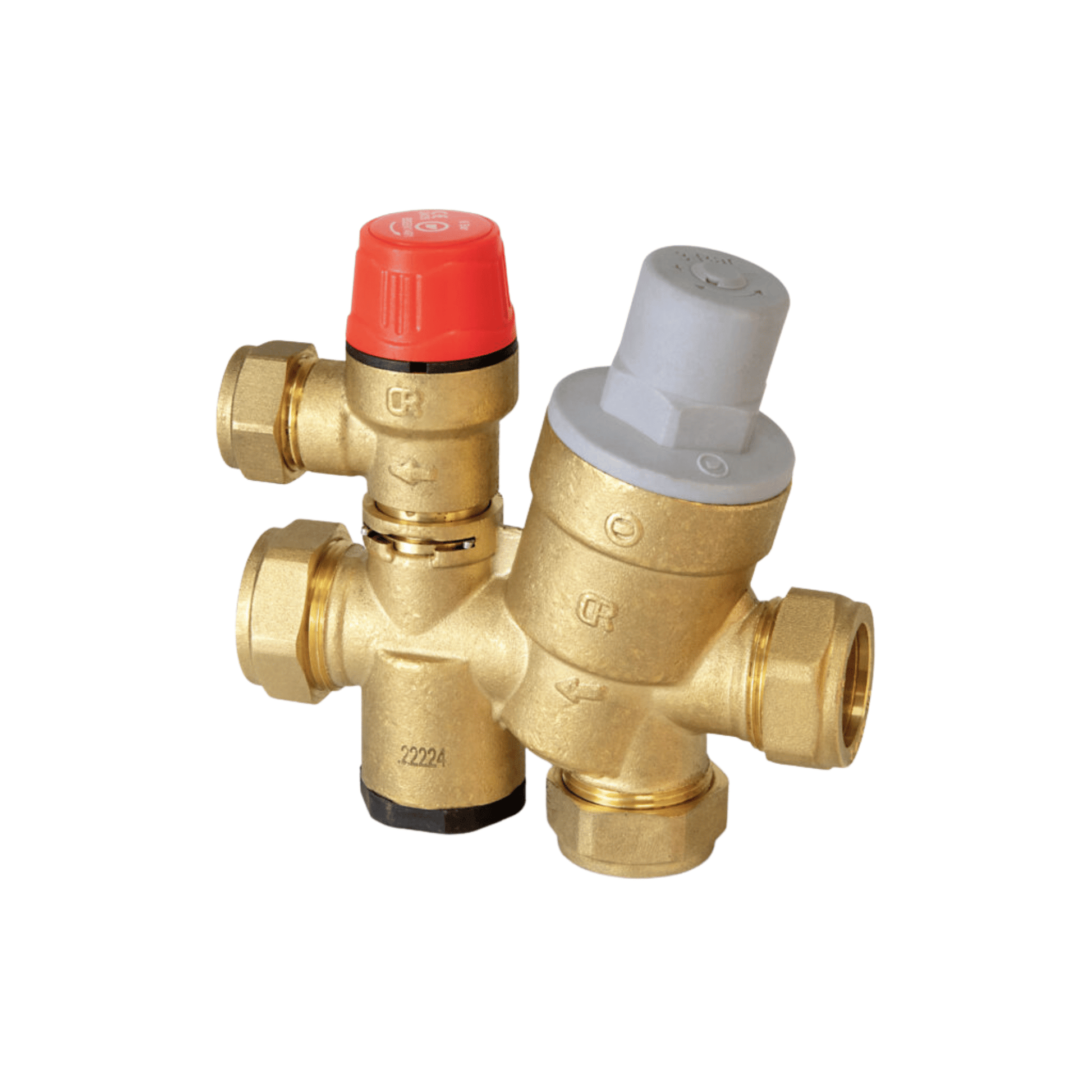

Inta Unvented Group Set - 3 Bar PRV - 6 Bar SRV - 22mm - UVGS22BC
Inta Unvented Group Set - 3 Bar PRV - 6 Bar SRV - 22mm - UVGS22BC
- Lead Time: 5-7 Working Days*
Regular price
£33.76
Regular price
Sale price
£33.76
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Installation & Operating Manual
Technical Specification
- Max Inlet Pressure: 16 Bar
- PRV Outlet Range: 1 – 4 Bar
- PRV Factory Setting: 3 Bar
- SRV Discharge Pressure: 6 Bar
- Max Operating Temperature: 85ºC
- Min Operating Temperature: 4ºC
- Max Closing Differential of SRV: 20%
Material
- Body: CW602N Brass AISI
- Strainer: 304 Stainless Steel
- Covers: PA66 + 30% FV
- PRV Cartridge: POM
- Includes a balanced cold feed connection
- Complies to BS EN 12897, EN1567 & EN1491
- Combines a PRV, SRV, check valve and filter in one fitting
- Controls inlet pressure to unvented hot water systems
- WRAS Approved
- 6 bar safety relief valve
