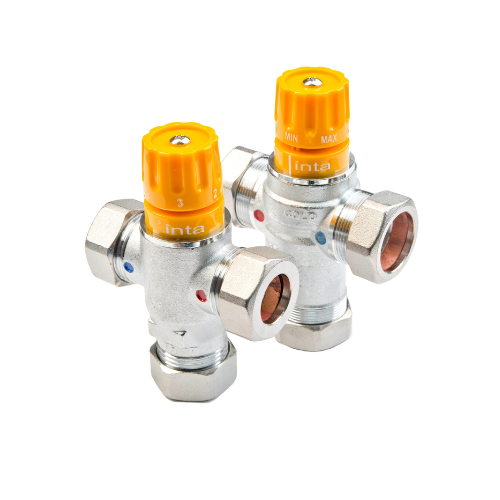

Inta Solar Rated Thermostatic Mixing Valve - 28mm - 50028SR

Inta’s solar rated mixing valves are designed to reduce the temperature of solar heated domestic hot water to safe, usable temperatures for the end user. These valves have been specifically designed to function with a constant high temperature hot water supply, something conventional blending valves are not able to cope with as well as having high flow rates making them ideal for installation in conjunction with domestic hot water cylinders.

• Solar rated mixing valve
• Designed specifically for high temperature applications
• Superior flow rates
• DZR brass construction
• Available in 22mm and 28mm
• Maximum static pressure 14 bar
• Maximum dynamic pressure 5 bar
• Temperature adjustment range 30 – 65°C
• Temperature stability ±2°C
• Maximum inlet temperature 110°C
• Minimum flow rate for stable operation 5 l/min
• Maximum inlet pressure differential 2:1
• Minimum temperature differential 15°C

*Stock dependant
