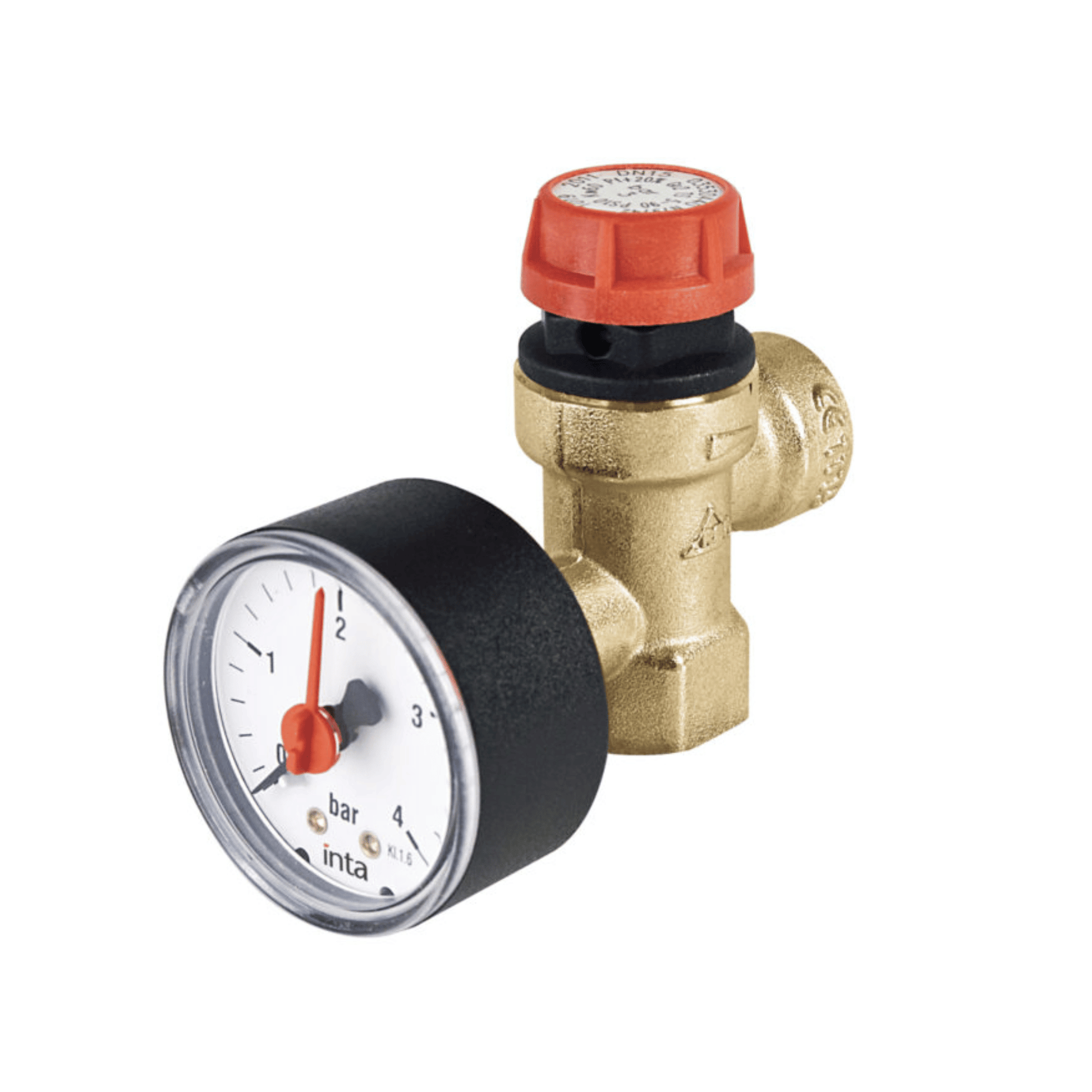

Inta Safety Relief Valve with Gauge - 8 Bar - 3/4" Female x Female - SRVG35307508

Inta’s WRAS* approved safety relief valves have been designed to protect closed circuit water heating systems from over pressure which can build up as a consequence of heating the water or any other fault conditions resulting in excessive pressure. Available with 1/2″ or 3/4″ connections and a range of pre-set discharge.

Datasheet

• Available with ½” or ¾” FxF and MxF connections
• Options available without gauge or gauge port
• Brass CW602N (EN12165) body
• Max Temperature 90°C
• Max static pressure 10 Bar
• Meets the requirements of european directive 97/23/CE
• Prevents damage to heating systems by relieving excess pressure
• Range of factory set discharge pressures available
• Built in accordance to EN4126-1
• CE 1115
• CPR Compliant
• PED Category IV
• WRAS Approved
