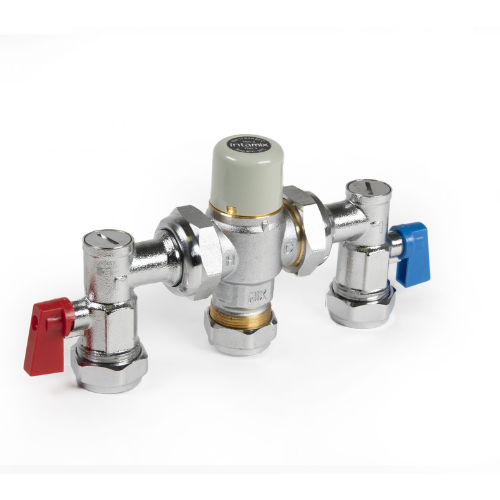

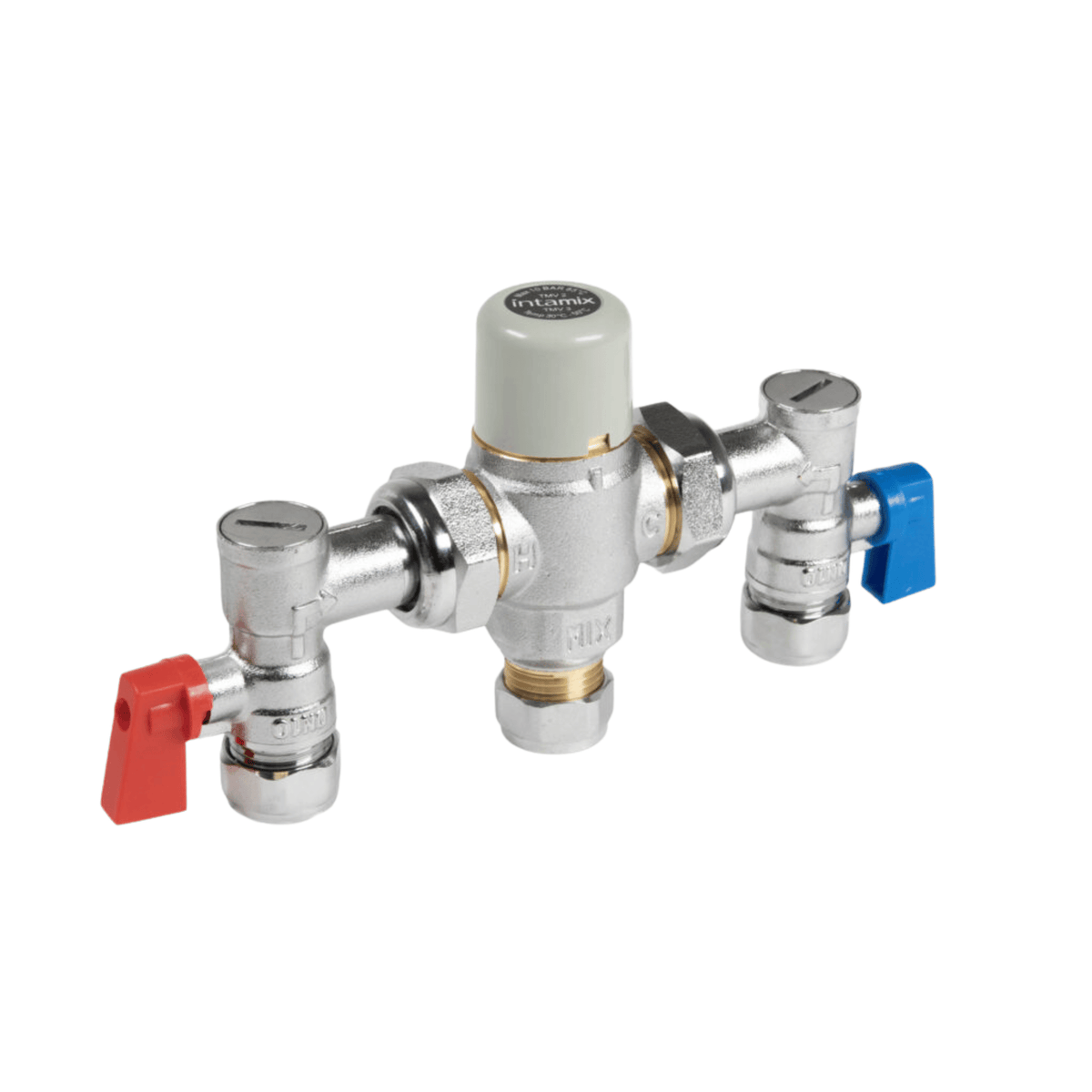

Inta Intamix Thermostatic Mixing Valve with Service Valves - 22mm - 400MX22CP

Datasheet

• Max Inlet Pressure (static): 10 Bar
• Min Inlet Pressure (dynamic): 0.2 Bar
• Max Inlet Temperature: 85°C
• Temperature Adjustment Range: 30°C to 50°C
• Temperature Stability: +/-2°C
• Max Pressure Differential: 5:1
• Min Temperature Differential Between Hot Inlet & Mixed Outlet to Achieve Cold Water Failsafe: 10°C

• Supplied with isolating ball valves
• One valve to suit all applications
• One piece cartridge for ease of maintenance and replacement
• High flow rates with low pressure drops
• TMV3 approved & complies with HTM04-01 DO8
• TMV2 approved & complies with BSEN1111 & BSEN1287:2017
• Complies with building regulations Part G
• WRAS approved
• Integral check valves & strainers
