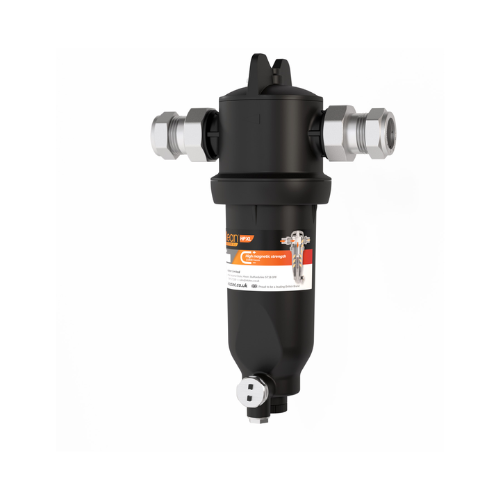

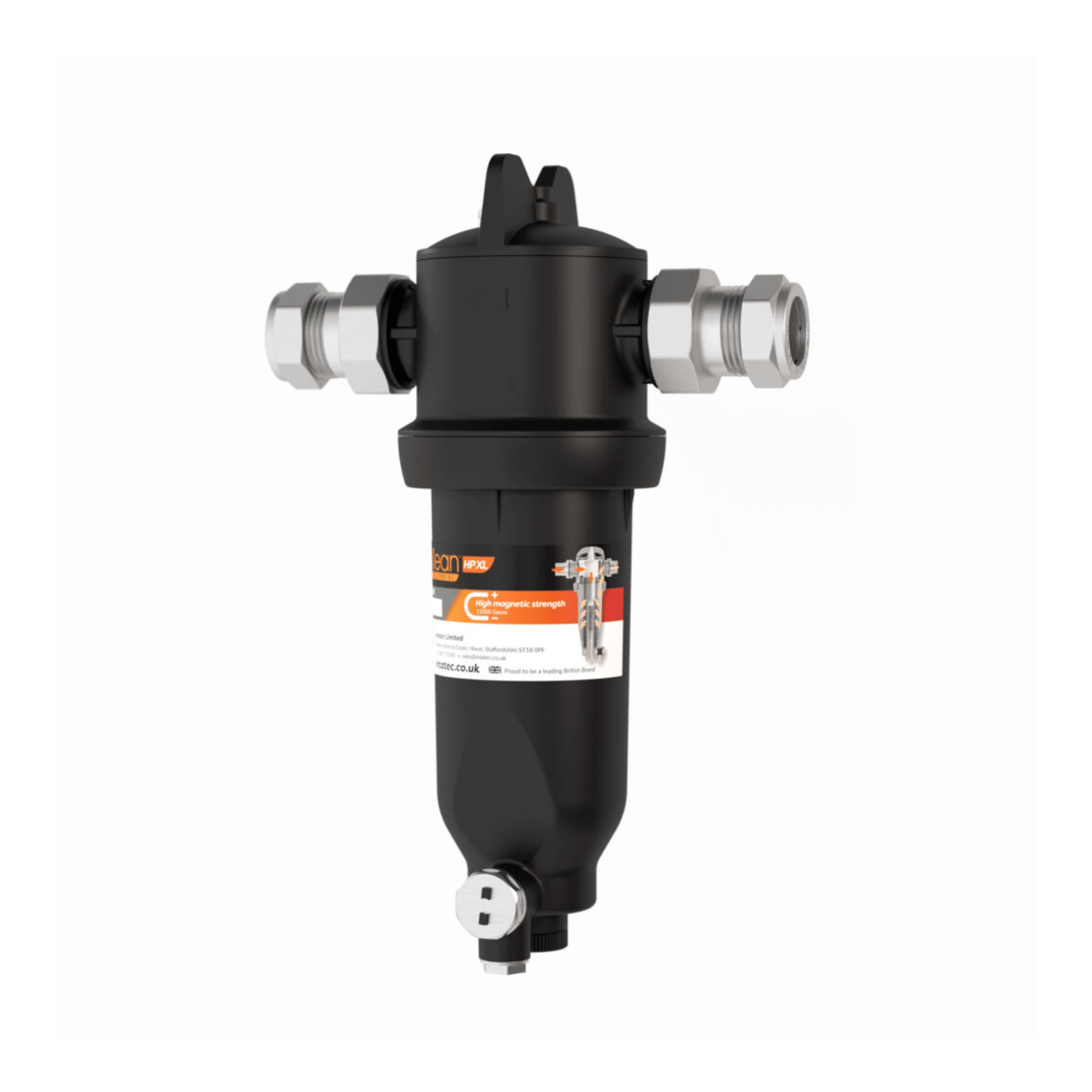

Inta IntaKlean HP XL Heat Pump Filter - 35mm with 28mm Reducing Sets - IK35MP1

The direct filter forces the fluid across the mesh of the filter before entering the filter chamber. In this chamber the mesh cartridge and strong neodymium magnet help to capture and breakdown the magnetite and nonferrous debris from the system.

The gravitational force pulls the non ferrous debris to the base of the pot, allowing it to be easily drained while any air passing through the filter floats to the top, where the manual air vent can purge it from the system.

Datasheet

Installation & Operating Manual

• Max Operating Pressure: 6 Bar
• Max Pressure During Maintenance: 3 Bar
• Max Working Temperature: 90°C
• Operating Temperature: 0 to 70°C
• Medium: Water + Glycol Up to 50%

• Actively filters magnetite and non-ferrous system debris
• Supplied with 28mm reducing set
• Self-cleaning
• Excellent hydraulic properties
• Extends the lifespan of heat pumps
• Fights corrosion
• Strong 11,000 gauss neodymium magnet
• Ensures system efficiency by removing impurities and fighting corrosion
• Complete with integrated shut-off device and discharge ball cock

Materials

• Body: Polyamide PA66 + 30% FV
• Filter Cartridge: Stainless Steel AISI 304
• Seals: Elastomer
• Magnet: Neodymium REN35 B – 11,000 Gauss
