Inta ApartmentHUB Compact without Water Meter Carrier - G1" - TVC01FF-CV

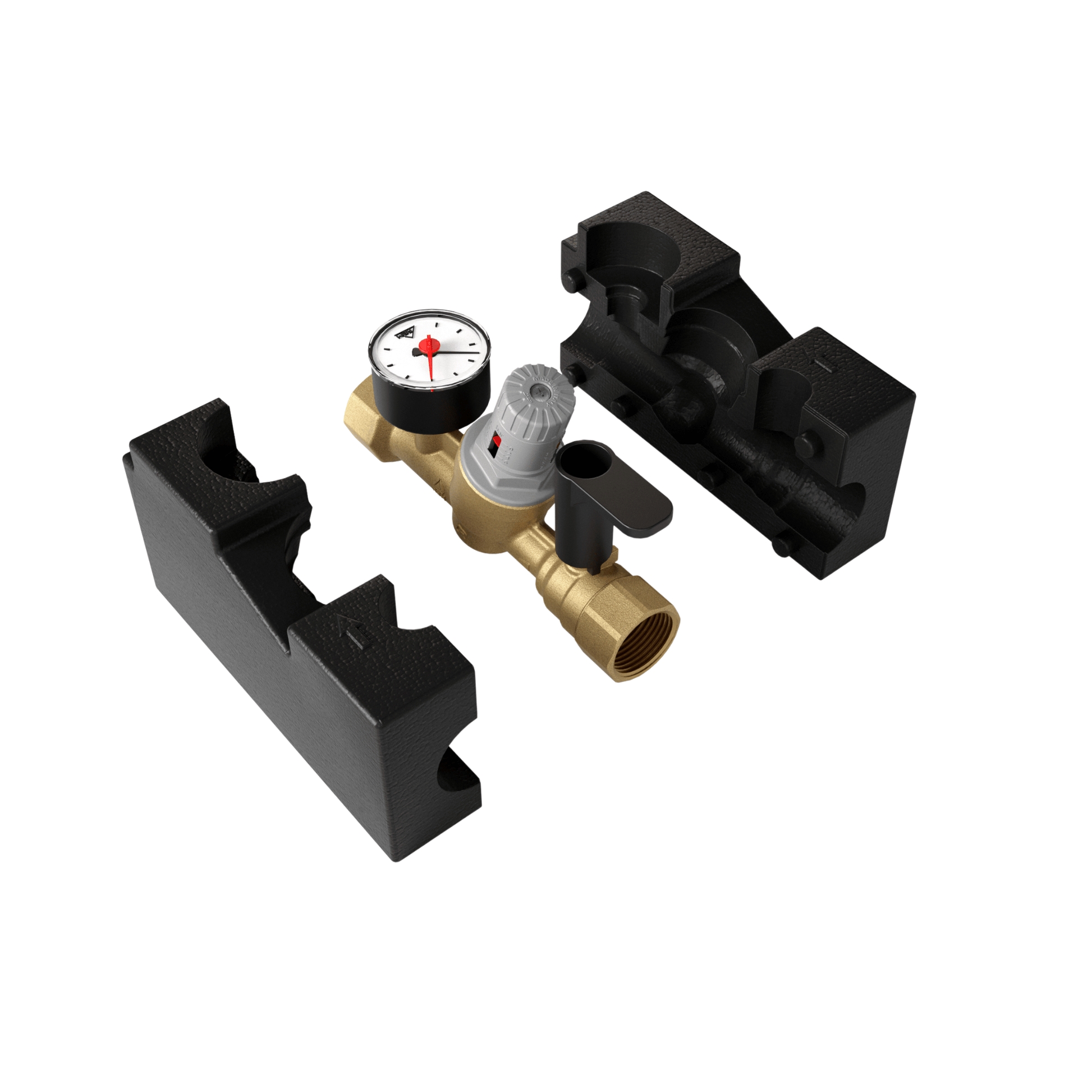

The Inta ApartmentHUB water meter assembly is a combination valve providing a stop valve, pressure reducing valve, pressure gauge, class D water meter carrier, double check valve and moulded insulation cover, in one convenient and easy-to-fit unit.

Datasheet

• Supplied with a whole assembly insulation jacket as standard
• Double check valve to eliminate the chance of backflow
• Stop valve included to allow isolation from the rest of the system, ideal for multi-dwelling properties
• Maximum inlet pressure (static): 16 bar
• Maximum inlet temperature: 65°C
• Pre-set Pressure: 4 bar
• Pressure adjustment range: 1-6 bar
• Installation: vertical or horizontal
