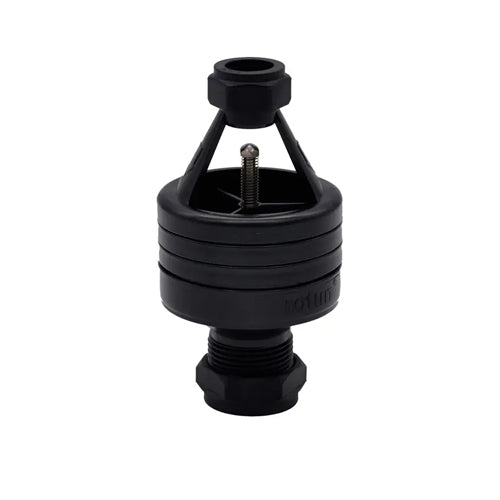

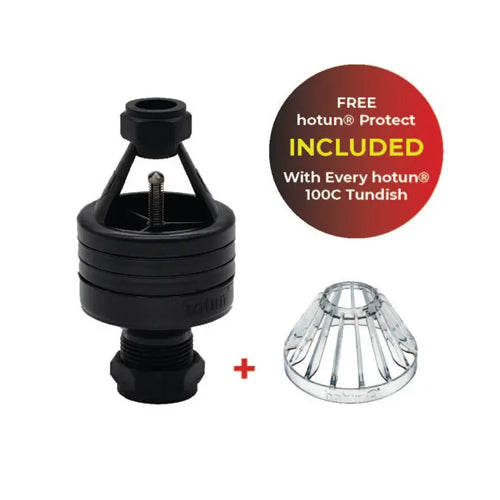

hotun® 100C Dry Trap Tundish - 15mm x 22mm - Black - HB100C

hotun® 100C Dry Trap Tundish - 15mm x 22mm - Black - HB100C

Shipping calculated at checkout.
 More payment options

Description

The revolutionary, plumber-designed hotun dry trap tundish allows a compliant connection from any sealed system temperature and pressure relief valve to an internal waste or soil pipe. Allowing both trickle and full flow but preventing foul odours and gases from coming back into a property, hotun eliminates the need for an external discharge.

Due to its innovative and patented “air-break to drain” design, (the ultimate back-flow & back-siphonage protection), hotun can be cleaned and serviced (if required) in situ. There is no need to remove or dismantle from the pipeline which makes it ideal for use in hard water areas.

The 100C dry trap tundish has an open-sided construction and valve arrangement that allows water to be easily seen in the tundish, even after the temperature and pressure relief valve has stopped dripping. This means that diagnoses of any faults is quick and simple.

As well as cost effective, hotun is a one-product solution and accepted for use by many leading water heater and boiler manufacturers.

Features & Benefits

  • NOW with a 10-Year Warranty
  • Water Regulation required "air-break to drain" designation for ultimate protection against backflow and back siphonage preventing contamination of wholesome water
  • Easy maintenance - Suitable for use in hard water areas. Can be maintained and easily inspected without having to dismantle the tundish or remove it from the pipeline.
  • Accepted for use by many of the world's largest boiler and water heater manufacturers
  • Allows relief valve discharge to be compliantly connected to drain without odours and eliminates the need for an external discharge
  • Minimal installation space requiring just a 73mm gap between pipes
  • Available in black (HB100C) and white (HW100C)
  • Suitable for use in conjunction with hotun detect in-tundish water alarm unit

Specification

  • Brand: hotun
  • Connections: 15mm x 22mm Compression Inlet and Outlet
  • Flow Rate: 12L/Min
  • Dimensions: 104mm (H) x 60mm (D)
  • Suitable For: Small water heaters (<15L), boilers, HIU's, condensate (MVHR, FCU & air conditioning units) and water storage tank overflows
  • Warranty: 10 Years
  • Colour: Black
  • Certifications: WRAS approved, fully compliant with G3 Building and Water Regulations
  • Model: hotun black 100C 15x22 Dry Trap Tundish HB100C

Warranty

10 Year Warranty (Conditional)
